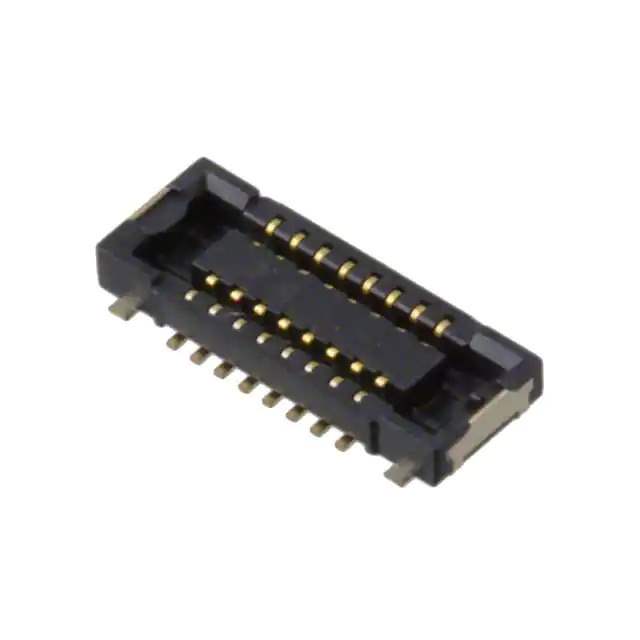

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A4S
Package Bulk
Product Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 16
Pitch 0.157" (4.00mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Standard Package 15,000 pcs
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 976811-AXE516127D
Ultra Librarian 3D Model Ultra Librarian AXE516127D CAD Model

Description

The AXE516127D connector from Panasonic is a high-quality rectangular connector array designed for board-to-board applications.

  • Positions: 16 positions
  • Pitch: 0.157" (4.00mm)
  • Features: solder retention
  • Connector Type: socket type with center strip contacts
  • Height Above Board: 0.030" (0.75mm)
  • Mounting: surface mountable
  • Contact Finish: gold contact finish
  • Packaging: bulk
  • Standard Package: 15,000 pcs
  • Description: reliable and versatile solution for board-to-board connectivity in a wide range of applications.
