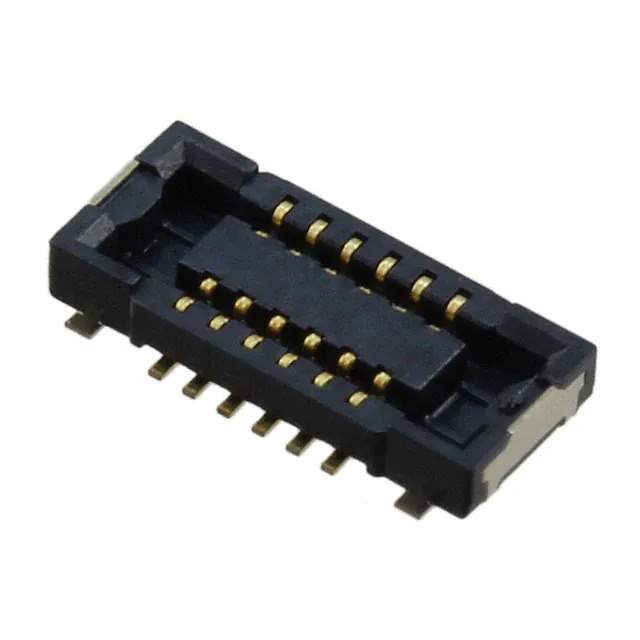

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A4S
Package Bulk
Product Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 12
Pitch 0.157" (4.00mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Standard Package 15,000 pcs
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 958725-AXE512127D
Ultra Librarian 3D Model Ultra Librarian AXE512127D CAD Model

Description

The 958725-AXE512127D is a rectangular connector array from Panasonic's A4S series.

  • Connector Type: socket connector with center strip contacts
  • Positions: 12 positions
  • Pitch: 0.157" (4.00mm)
  • Suitable for: edge type and mezzanine (board to board) applications
  • Mounting Type: surface mount
  • Height Above Board: 0.030" (0.75mm)
  • Solder Retention: offers solder retention for secure connections
  • Contact Finish: gold
  • Packaging: bulk
  • Standard Package: 15,000 pcs
  • Description: compact size and reliable performance, the 958725-AXE512127D is an ideal choice for various electronic applications.
