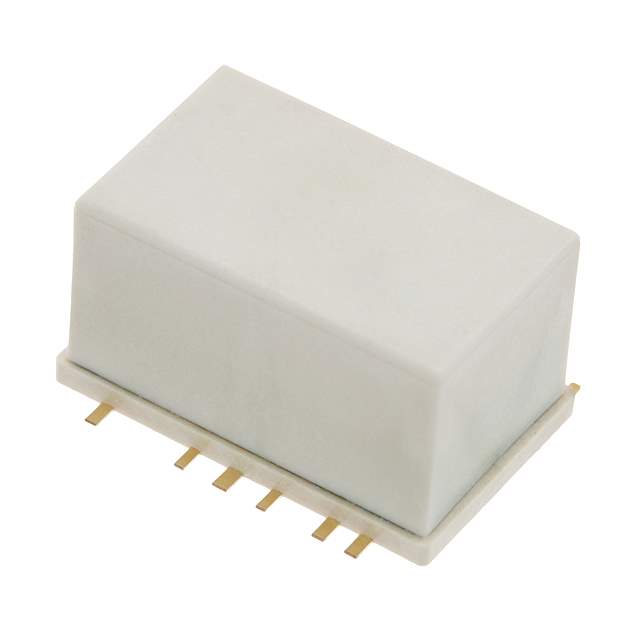

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>High Frequency (RF) Relays
Mfr Panasonic Electric Works
Series ARS
Package Box
Coil Type Non Latching
Coil Current 16.7 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500 mA
Switching Voltage 30VDC - Max
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 6 ms
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 70°C
Contact Material Gold Plating
Coil Power 200mW
Coil Resistance 720 Ohms
Base Product Number ARS10
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Other Names ARS1012-ND,255-5282
Standard Package 50
Win Source Part Number 988544-ARS1012
Ultra Librarian 3D Model Ultra Librarian ARS1012 CAD Model

Description

The Panasonic Electric Works ARS1012 is a high-frequency (RF) relay component with a SPDT (1 Form C) contact form.

  • Contact Form: SPDT (1 Form C)
  • Contact Material: Gold Plating
  • Contact Rating (Current): 500 mA
  • Switching Voltage: 30VDC - Max
  • Coil Voltage: 12VDC
  • Coil Resistance: 720 Ohms
  • Coil Current: 16.7 mA
  • Operating Temperature: -40°C to 70°C
  • Mounting Type: Through-Hole
  • Must Operate Voltage: 9VDC
  • Must Release Voltage: 1.2VDC
  • ECCN: EAR99
  • MSL Level: Not Applicable
  • Manufacturer: Panasonic Electric Works
  • Standard Package: 50 components
