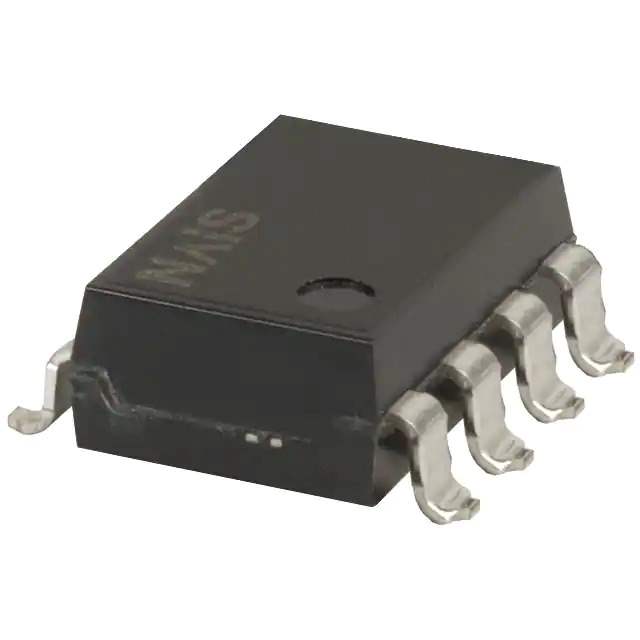

AQW654A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQW
Package Tube
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO + SPST-NC (1 Form A and B)
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 400 V
Load Current 120 mA
On-State Resistance (Max) 16 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-SMD
Base Product Number AQW654
Standard Package 50 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 564436-AQW654A
Ultra Librarian 3D Model Ultra Librarian AQW654A CAD Model

Description

The Panasonic AQW654A is a solid-state relay from the PhotoMOS™ AQW series.

  • Series: PhotoMOS™ AQW
  • Circuit Configuration: SPST-NO + SPST-NC (1 Form A and B)
  • Output Type: AC and DC
  • On-State Resistance: 16 Ohms
  • Load Current: 120 mA
  • Input Voltage: 1.14VDC
  • Switching Voltage: 400V
  • Mounting: Surface mountable
  • Package: 8-SMD
  • Packaging: Tube
  • Standard Package: 50 pcs
  • Status: Active
  • Manufacturer: Panasonic
