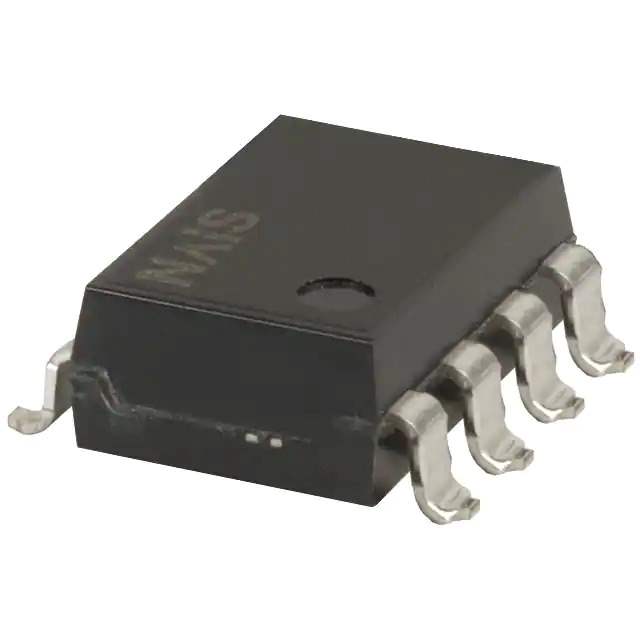

AQW254A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQW
Package Tube
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 400 V
Load Current 120 mA
On-State Resistance (Max) 16 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-SMD
Base Product Number AQW254
Standard Package 50 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 564416-AQW254A
Ultra Librarian 3D Model Ultra Librarian AQW254A CAD Model

Description

The PhotoMOS AQW254A is a solid state relay designed for various applications in the electronics industry, manufactured by Panasonic.

  • Termination Style: gull wing
  • Mounting Type: surface mount
  • Circuit Configuration: SPST-NO (1 Form A) x 2
  • Maximum On-State Resistance: 16 Ohms
  • Load Current: up to 120 mA
  • Voltage Input: 1.14VDC
  • Voltage Load: 0 V to 400 V
  • Standard Package: 50 pcs
  • Package: 8-SMD
  • Status: active product
  • Series: PhotoMOS AQW series
