Same model may have multiple batches, images only for reference.

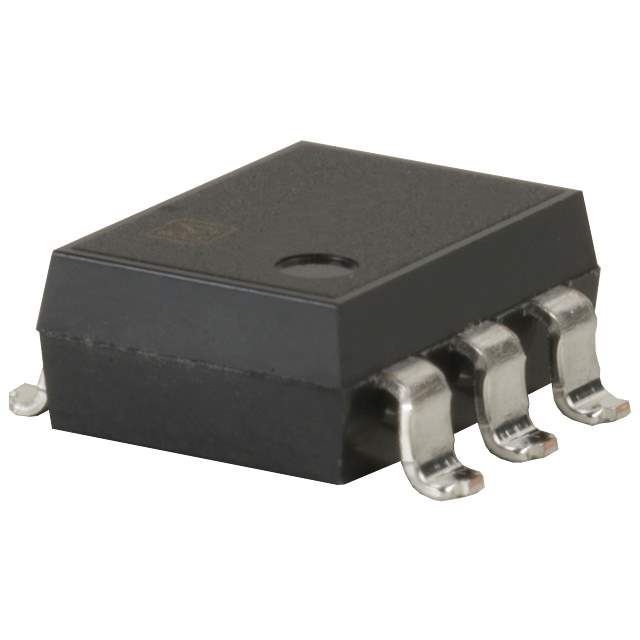

AQV412EHAX Real Image
Same model may have multiple batches, images only for reference.

AQV412EHAX

Part No AQV412EHAX
Manufacturer Panasonic
Catalog Solid State Relays
Description RELAY OPTO SPST-NC  550MA 60V / Solid State Relay 50mA 1.5V DC-IN 0.55A 60V AC/DC-OUT 6-Pin DIP SMD T/R
Datasheet
AQV412EHAX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series PhotoMOS AQV
Packaging Reel package
Circuit SPST-NC (1 Form B)
Output Type AC, DC
On-State Resistance (Maximum) 2.5 Ohm
Load Current 550mA
Voltage - Input 1.14VDC
Voltage - Load 0 ~ 60 V
Mounting SMD
Termination Style Gull Wing
Package 6-SMD (0.300", 7.62mm)
Manufacturer Package 6-SMD
Relay Type Relay
Win Source Part Number 768746-AQV412EHAX
Popularity Medium
Supply and Demand Status Limited
Family Name AQV412EH
Introduction Date May 01, 2006
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian AQV412EHAX CAD Model

Description

The Panasonic Electric Works PhotoMOS AQV series relay is a SPST-NC (1 Form B) relay with a load current of 550mA and a voltage input of 1.14VDC.

  • Voltage Load Range: 0-60V
  • On-State Resistance (Maximum): 2.5 Ohm
  • Relay Type: AC/DC
  • Package: 6-SMD (0.300", 7.62mm)
  • Termination Style: Gull-wing
  • Series: AQV412EH
  • Estimated EOL Date: 2029
