Same model may have multiple batches, images only for reference.

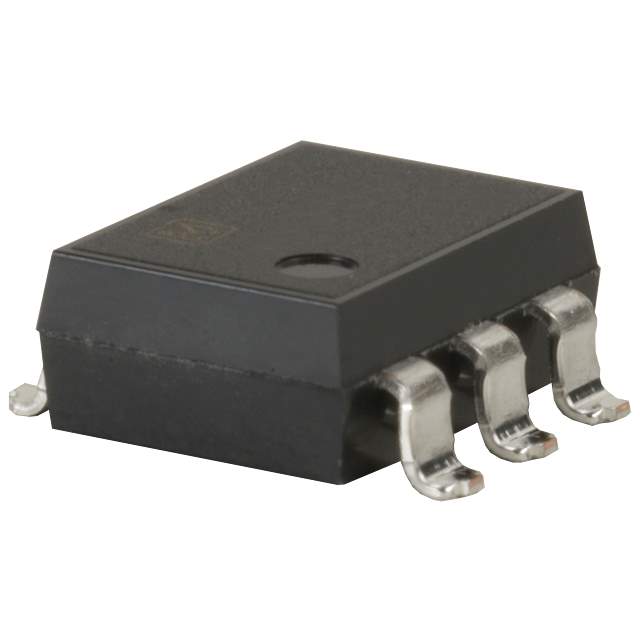

AQV412EHA Real Image
Same model may have multiple batches, images only for reference.

AQV412EHA

Part No AQV412EHA
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NC 550MA 0-60V / Solid State DPST-NC (2 Form B) 6-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Panasonic Electric Works
Series PhotoMOS™ AQV
Package Tube
Mounting SMD (SMT)
Circuit DPST-NC (2 Form B)
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 60 V
Load Current 550 mA
On-State Resistance (Max) 2.5 Ohms
Termination Style Gull Wing
Package / Case 6-SMD (0.300", 7.62mm)
Supplier Device Package 6-SMD
Base Product Number AQV412
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.49.8000
Other Names 255-6029,-AQV412EHA-ND,AQV412EHA-ND
Standard Package 50
Win Source Part Number 1045877-AQV412EHA
Ultra Librarian 3D Model Ultra Librarian AQV412EHA CAD Model

Description

The Win Source Part Number for this solid state relay is 1045877-AQV412EHA.

  • Series: PhotoMOS™ AQV series
  • Circuit: DPST-NC with 2 Form B
  • Voltage Input: 1.14VDC
  • Output Type: AC/DC
  • On-State Resistance: 2.5 Ohms
  • Load Current: 550 mA
  • Voltage Load Range: 0 V to 60 V
  • Package: 6-SMD
