Same model may have multiple batches, images only for reference.

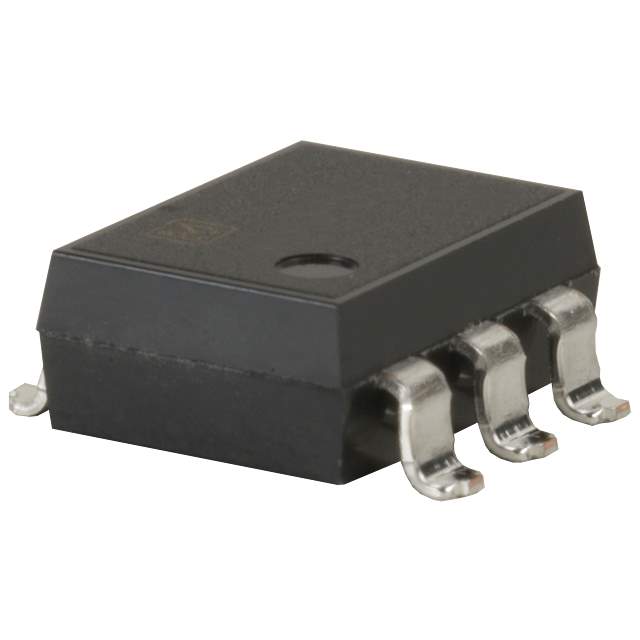

AQV256HAX Real Image
Same model may have multiple batches, images only for reference.

AQV256HAX

Part No AQV256HAX
Manufacturer Panasonic
Catalog Solid State Relays
Description RELAY OPTO AC/DC 600V 130MA 6SMD / Solid State Relay 30mA 1.5V DC-IN 0.13A 480V AC/DC-OUT 6-Pin DIP SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series PhotoMOS AQV
Packaging Reel package
Circuit SPST-NO (1 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 30 Ohm
Load Current 130mA
Voltage - Input 1.14VDC
Voltage - Load 0 ~ 600 V
Mounting SMD
Termination Style Gull Wing
Package 6-SMD (0.300", 7.62mm)
Manufacturer Package 6-SMD
Relay Type Relay
Win Source Part Number 768742-AQV256HAX
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name AQV256HAX
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian AQV256HAX CAD Model

Description

The Panasonic Electric Works PhotoMOS AQV series relay, part number 768742-AQV256HAX, is a SPST-NO (1 Form A) relay with a load current of 130mA and voltage load of 0 ~ 600V.

  • Termination Style: Gull Wing
  • Package: 6-SMD (0.300", 7.62mm)
  • Input Voltage: 1.14VDC
  • Output Type: AC/DC
  • On-State Resistance: 30 Ohm maximum
  • Estimated EOL Date: 2029
