Same model may have multiple batches, images only for reference.

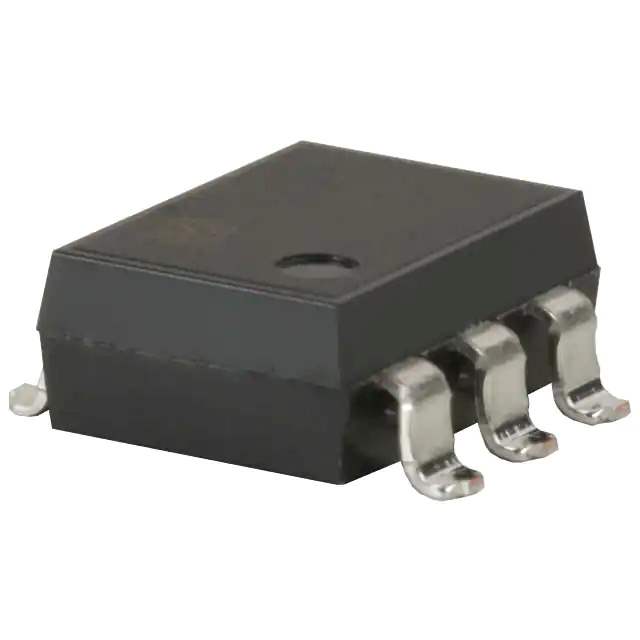

AQV251GAZ Real Image
Same model may have multiple batches, images only for reference.

AQV251GAZ

Part No AQV251GAZ
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 3.5A 0-30V / Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQV
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.25VDC
Voltage - Load 0 V ~ 30 V
Load Current 3.5 A
On-State Resistance (Max) 80 mOhms
Termination Style Gull Wing
Package / Case 6-SMD (0.300", 7.62mm)
Supplier Device Package 6-SMD
Base Product Number AQV251
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 861720-AQV251GAZ
Ultra Librarian 3D Model Ultra Librarian AQV251GAZ CAD Model

Description

The PhotoMOS™ AQV251GAZ is a solid-state relay suitable for a wide range of applications in the electronics industry.

  • Circuit Configuration: SPST-NO (1 Form A)
  • Input Voltage: 1.25VDC
  • Load Current: 3.5A
  • Voltage Load Range: 0V to 30V
  • On-State Resistance: 80 mOhms
  • Mounting: Surface Mountable
  • Package: 6-SMD
  • Packaging: Tape and Reel
  • Standard Package: 1,000 pieces
  • Manufacturer: Panasonic
  • Series: PhotoMOS™ AQV
