Same model may have multiple batches, images only for reference.

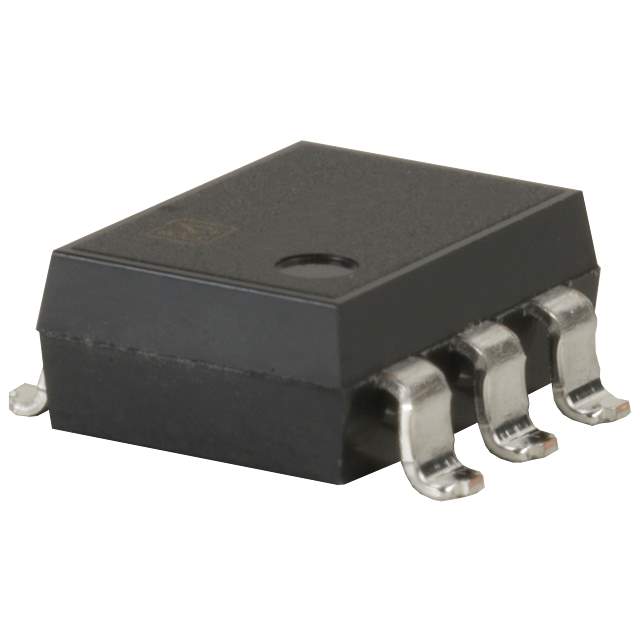

AQV112KLAX Real Image
Same model may have multiple batches, images only for reference.

AQV112KLAX

Part No AQV112KLAX
Manufacturer Panasonic
Catalog Solid State Relays
Description RELAY SSR SPST 500MA 60V 6SMD / Solid State Relay 50mA 1.5V DC-IN 0.5A 48V DC-OUT 6-Pin DIP SMD T/R
Datasheet
AQV112KLAX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series PhotoMOS AQV
Packaging Reel package
Circuit SPST-NO (1 Form A)
Output Type DC
On-State Resistance (Maximum) 2 Ohm
Load Current 500mA
Voltage - Input 1.35VDC
Voltage - Load 0 ~ 60 V
Mounting SMD
Termination Style Gull Wing
Package 6-SMD (0.300", 7.62mm)
Manufacturer Package 6-SMD
Relay Type Relay
Win Source Part Number 768732-AQV112KLAX
Popularity Medium
Supply and Demand Status Balance
Family Name AQV112KL
Introduction Date May 01, 2006
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian AQV112KLAX CAD Model

Description

The PhotoMOS AQV series is a product of Panasonic Electric Works.

  • Package: 6-SMD (0.300", 7.62mm)
  • Mounting: Surface Mount Technology
  • Win Source Part Number: 768732-AQV112KLAX
  • Type: Relay
  • Load Current: 500mA
  • Output Type: DC
  • Circuit: SPST-NO (1 Form A)
  • Voltage Range: 0 ~ 60 V
  • Family: AQV112KL
  • Popularity: High
  • Status: Balanced Supply and Demand
  • EOL Date: 2029
