Same model may have multiple batches, images only for reference.

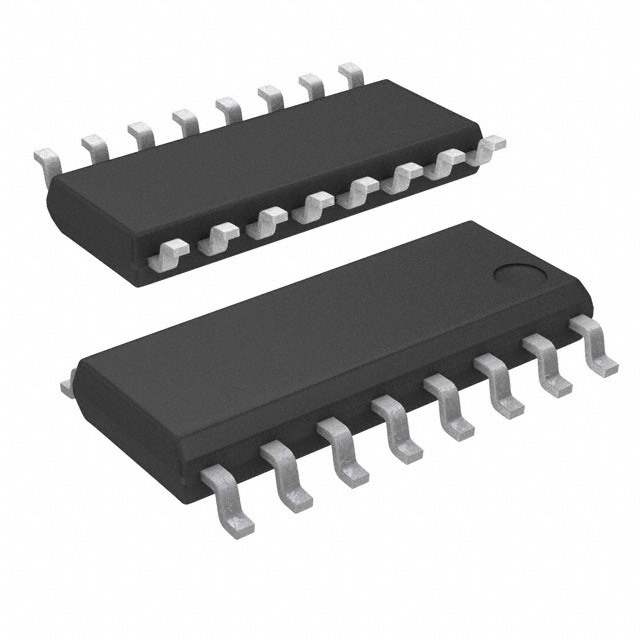

AQS221FR2S Real Image
Same model may have multiple batches, images only for reference.

AQS221FR2S

Part No AQS221FR2S
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 160MA 0-40V
Datasheet
AQS221FR2S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQS
Package Tube
Product Status Last Time Buy
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A) x 4
Output Type AC, DC (RF)
Voltage - Input 1.3VDC
Voltage - Load 0 V ~ 40 V
Load Current 160 mA
On-State Resistance (Max) 1.25 Ohms
Termination Style Gull Wing
Package / Case 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package 16-SOP
Base Product Number AQS221
Standard Package 50 pcs
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 564328-AQS221FR2S
Ultra Librarian 3D Model Ultra Librarian AQS221FR2S CAD Model

Description

The PhotoMOS™ AQS221FR2S is a solid-state relay designed for various electronic applications.

  • Voltage Input: 1.3VDC
  • Output: AC and DC
  • Configuration: SPST-NO
  • On-State Resistance: 1.25 Ohms (Max)
  • Load Current: 160 mA (Max)
  • Voltage Load: 0 V to 40 V
  • Mounting Type: Surface Mount
  • Package: 16-SOIC
  • Termination Style: Gull Wing
  • Manufacturer: Panasonic
  • Series: AQS
  • Standard Package: 50 pcs
  • Status: Last Time Buy
