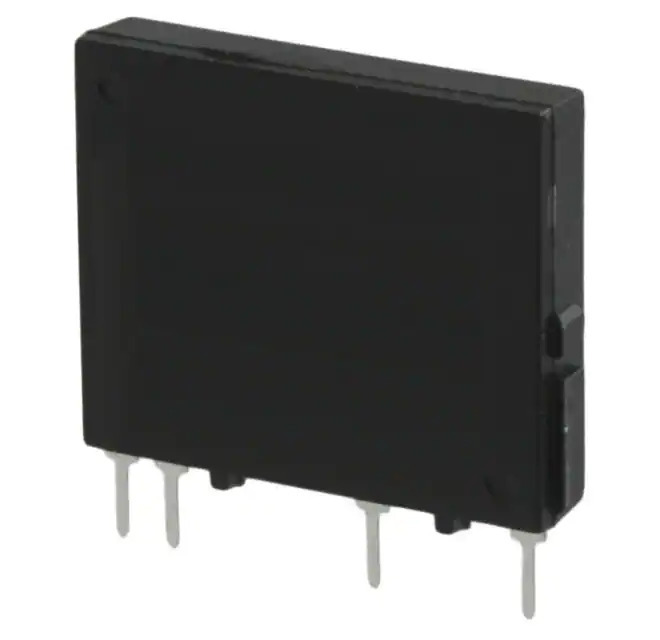

AQG12124 Panasonic
Same model may have multiple batches, images only for reference.

AQG12124

Part No AQG12124
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 1A 75-264V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic Electric Works
Series AQ-G
Package Bulk
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 19.2 ~ 28.8VDC
Voltage - Load 75 V ~ 264 V
Load Current 1 A
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIP
Base Product Number AQG121
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1372022-AQG12124
Ultra Librarian 3D Model Ultra Librarian AQG12124 CAD Model

Description

The 1372022-AQG12124 is a solid state relay from Panasonic Electric Works.

  • Series: AQ-G
  • Output Type: AC zero-cross
  • Voltage Load: 75 V to 264 V
  • Input Voltage: 19.2 V to 28.8 VDC
  • Load Current: 1 A
  • Mounting Type: Through Hole
  • Package: 4-SIP
