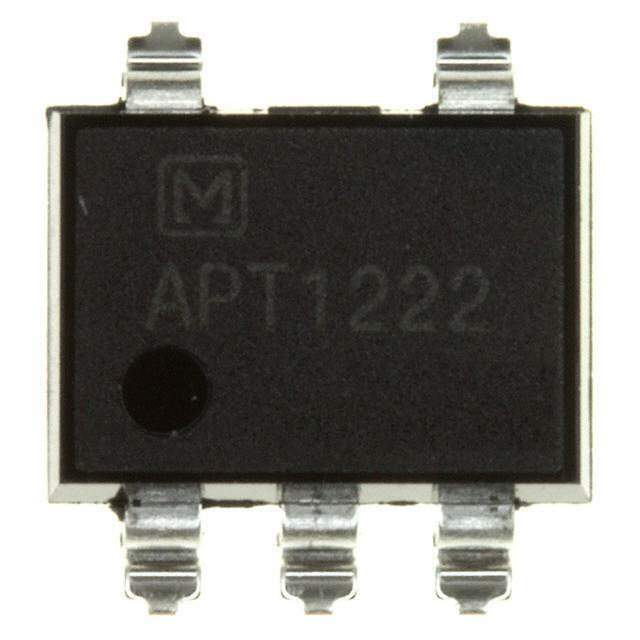

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Panasonic Electric Works
Packaging Tube
Output Type Triac
Zero Crossing Circuit Yes
Voltage - Isolation 5000Vrms
Voltage - Off State 600V
Static dV/dt (Minimum) 500V/μs
Current - LED Trigger (Ift) (Maximum) 10mA
Current - On State (It (RMS)) (Maximum) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 100μs (Maximum)
Voltage - Forward (Vf) 1.21V
Current - DC Forward (If) (Maximum) 50mA
Temperature Range - Operating -40°C ~ 100°C
Mounting Style SMD
Manufacturer Package 5-SMD, Gull Wing
Supplier Device Package 6-DIP Gull Wing
Approvals cUR, VDE
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1146610-APT1232A
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian APT1232A CAD Model

Description

The APT1232A is an isolator manufactured by Panasonic Electric Works.

  • Output Type: Triac
  • Zero Crossing Circuit: Yes
  • Approvals: cUR, VDE
  • Voltage-Off State: 600V
  • Voltage-Isolation: 5000Vrms
  • Current-Hold: 3.5mA
  • Maximum Turn-On Time: 100μs
  • Supply and Demand: Balanced
