Same model may have multiple batches, images only for reference.

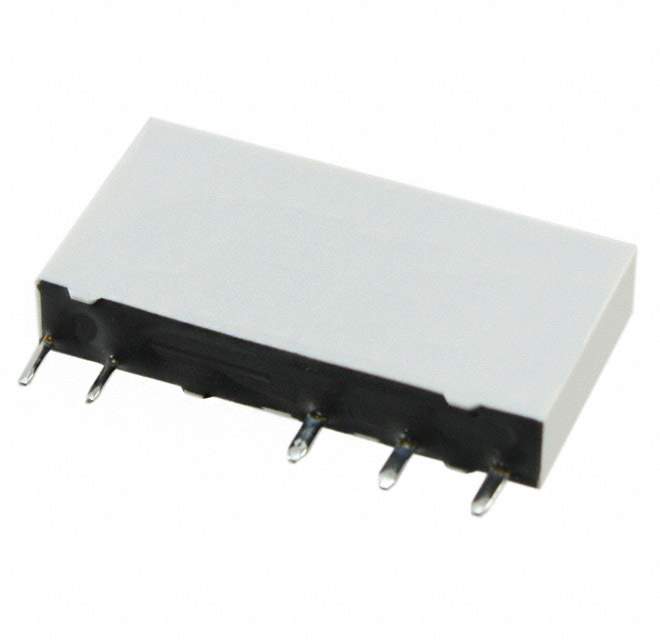

APF10205 Real Image
Same model may have multiple batches, images only for reference.

APF10205

Part No APF10205
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 6A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Manufacturer Panasonic Electric Works
Packaging Tube
Mounting Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 6 A
Switching Voltage 250VAC - Max
Coil Current 34 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.25 VDC
Operate Time 8 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 147 Ohms
Base Product Number APF102
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Part Number 255-4238-5
Standard Package 20
Win Source Part Number 1323773-APF10205
Ultra Librarian 3D Model Ultra Librarian APF10205 CAD Model

Description

The APF10205 is a Power Relay from Panasonic Electric Works.

  • Category: Power Relays, Over 2 Amps
  • Package: Tube
  • Termination Style: PC Pin
  • Contact Form: Single Pole Single Throw Normally Open (SPST-NO)
  • Contact Material: Silver Nickel (AgNi)
  • Standard Package: 20
  • Mounting: Through Hole
  • Coil Resistance: 147 Ohms
  • Coil Current: 34 mA
  • Operate Time: 8 ms
  • Relay Type: General Purpose
  • Coil Type: Non-Latching
  • Coil Voltage: 5VDC
  • Contact Rating (Current): 6A
  • Switching Voltage: 250VAC - Max
  • Release Time: 4ms
  • Operating Temperature: -40°C ~ 85°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.41.0050
  • RoHS Compliant: Yes
