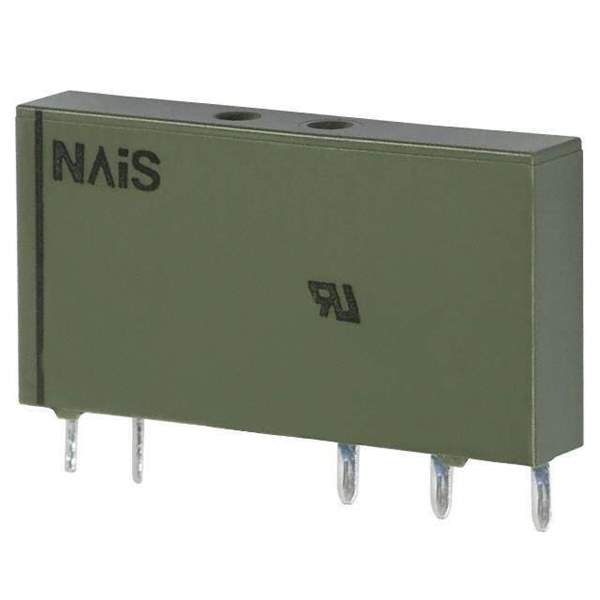

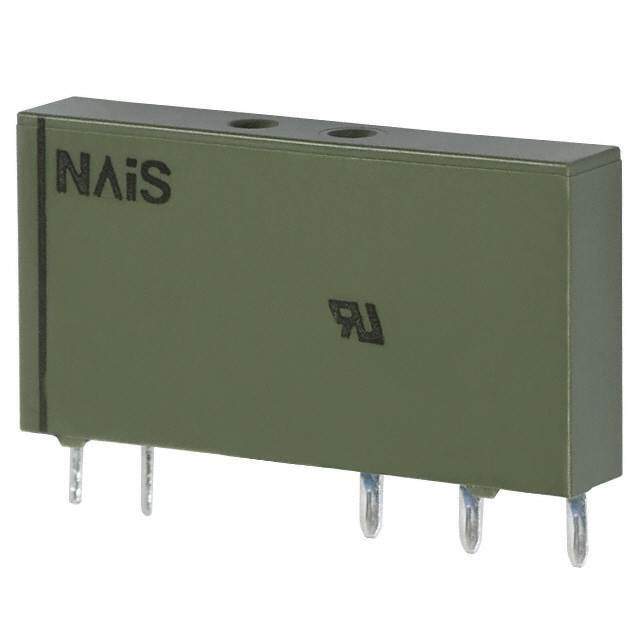

APE3014H Real Image APE3014H real image
Same model may have multiple batches, images only for reference.
APE3014H Real Image APE3014H real image
APE3014H Real Image APE3014H real image
Same model may have multiple batches, images only for reference.

APE3014H

Part No APE3014H
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description THE SLIM POWER RELAY | RELAY GEN PURPOSE SPDT 6A 4.5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube
Status Obsolete
Mounting Style Through Hole
Coil Voltage 4.5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 6A
Switching Voltage 250VAC - Max
Coil Current 38.0mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 2.97 VDC
Must Release Voltage 0.225 VDC
Operate Time 8ms
Release Time 4ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 119 Ohms
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Win Source Part Number 1146312-APE3014H
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian APE3014H CAD Model

Description

The Panasonic Electric Works APE3014H is a SPDT (1 Form C) contact form general purpose relay. The device has a coil voltage of 4.5VDC and a coil resistance of 119 Ohms.

  • Contact Rating (Current): 6A
  • Switching Voltage: 250VAC - Max
  • Mounting Style: Through Hole
  • Termination Style: PC Pin
  • Maximum Operate Time: 8ms
  • Release Time: 4ms
  • Status: Obsolete
  • Manufacturer Pack Quantity: 20
  • Supply and Demand Status: Balanced
