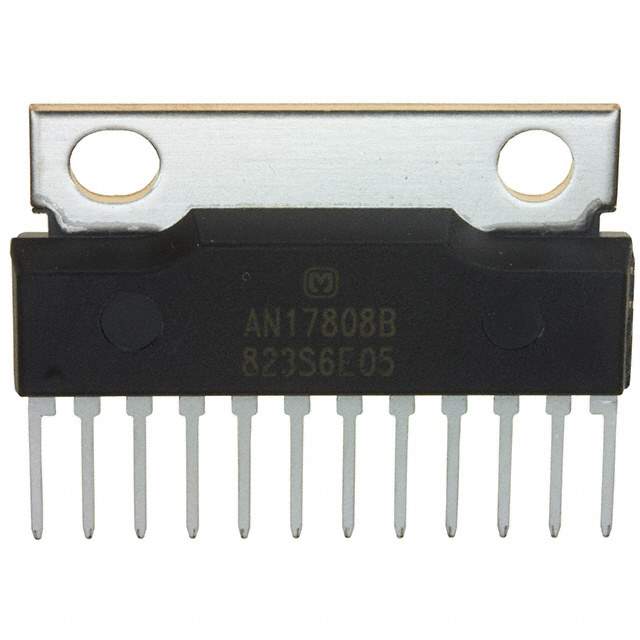

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Panasonic Electronic Components
Packaging Tube/Rail
Status Obsolete(EOL)
Type Class AB
Output Type 2-Channel (Stereo)
Max Output Power x Channels @ Load 7W x 2 @ 8 Ohm
Supply Voltage - Operating 10 V to 24 V
Features Mute, Standby, Thermal Protection
Mounting Through Hole
Temperature Range - Operating -25°C to 75°C (TA)
Case / Package 12-SIL
Dimension 12-SIP + Tab
Win Source Part Number 078048-AN17808B
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AN17808B CAD Model

Description

AN17808B - High-Power Audio Amplifier

The AN17808B is a high-power audio amplifier designed for systems that require substantial sound output and consistent performance. This amplifier is ideal for use in venues and applications that demand high-volume audio delivery.

  • Applications:
    • Concert audio systems
    • Public announcement systems
    • High-end home audio systems
    • Large auditorium sound setups
  • Features and Benefits:
    • High output power for extensive audio reach
    • Stable performance across various load conditions
    • Durable construction for long-term use
    • Advanced thermal management capabilities
  • Additional Details:
    • Versatile connectivity options
    • Integrated voltage and current protection
