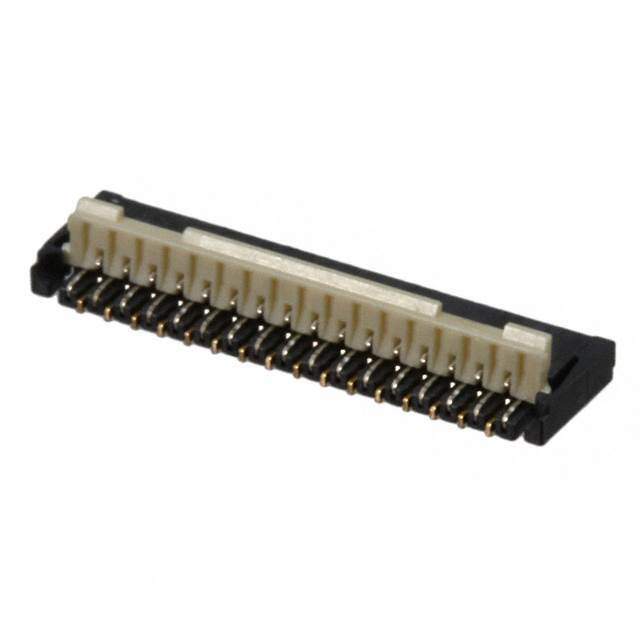

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Panasonic Electric Works
Series Y3B
Package Strip
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 31
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.88mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A per Contact
Mating Cycles 20
Base Product Number AYF333135
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names AYF333135A-ND,255-5649
Standard Package 500
Win Source Part Number 1047217-AYF333135A
Ultra Librarian 3D Model Ultra Librarian AYF333135A CAD Model

Description

The Y3B series FPC connector is an ideal solution for connecting flat flexible cables to printed circuit boards.

  • Series: Y3B
  • Pitch: 0.012 inches (0.30mm)
  • Positions: 31
  • Locking: Flip lock and backlock
  • Contact Material: Copper alloy
  • Contact Finish: Gold
  • Voltage Rating: 50V
  • Housing and Actuator Material: Liquid crystal polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Mounting: Surface mountable
  • Mounting Type: Right angle
  • Temperature Range: -55°C to 85°C
  • Mating Cycle: 20
  • Alternatives: XF3A-2355-41A, XF3A-2555-41A, 5047543920, XF3Z-2555-31B, FH23-31S-0.3SHAW(05), FH26W-31S-0.3SHW(60)
