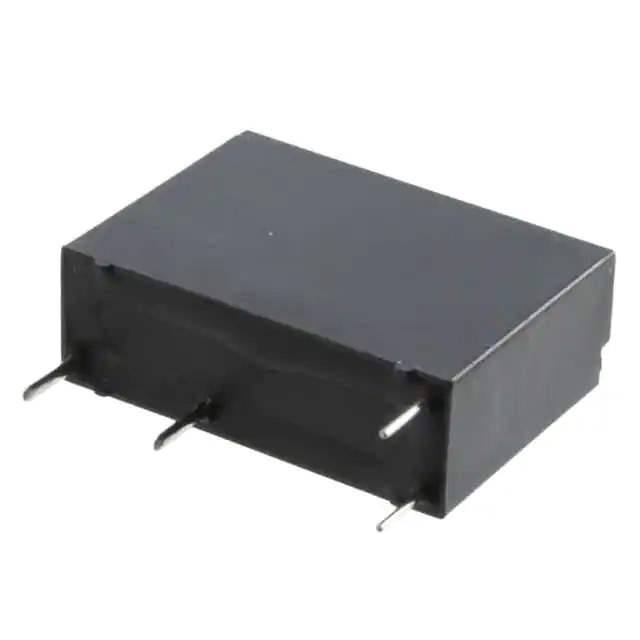

ALDP124W Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series ALDP
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 277VAC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 18 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number ALDP124
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 845499-ALDP124W
Ultra Librarian 3D Model Ultra Librarian ALDP124W CAD Model

Description

The Panasonic ALDP124W is a power relay designed for general-purpose applications.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Nickel (AgNi)
  • Switching Voltage: 277VAC
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.88 kOhms
  • Coil Current: 8.3 mA
  • Operate Time: 10 ms
  • Release Time: 10 ms
  • Contact Rating (Current): 5 A
  • Mounting Type: Through Hole
  • Temperature Range: -40°C ~ 85°C
  • Packaging: Tray
  • Standard Package: 100 pcs
  • Lifecycle Status: Active
  • Series: ALDP
  • Manufacturer: Panasonic
