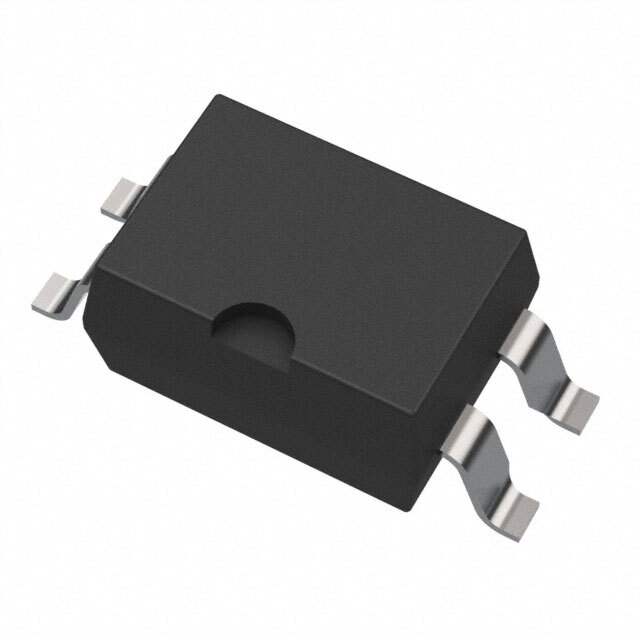

CPC1393GRTR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr IXYS
Series CPC, OptoMOS®
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 600 V
Load Current 90 mA
On-State Resistance (Max) 50 Ohms
Termination Style Gull Wing
Package / Case 4-SMD (0.300", 7.62mm)
Supplier Device Package 4-SMD
Base Product Number CPC1393
Standard Package 1,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 580134-CPC1393GRTR
Ultra Librarian 3D Model Ultra Librarian CPC1393GRTR CAD Model

Description

The CPC1393GRTR is a solid state relay from the CPC series by IXYS.

  • Termination Style: Gull Wing
  • Package: Tape & Reel
  • Voltage Input: 1.2VDC
  • Output Type: AC and DC
  • Relay Type: Single Pole, Single Throw Normally Open (SPST-NO)
  • On-State Resistance: 50 Ohms
  • Load Current Capacity: 90 mA
  • Voltage Capacity: 0V to 600V
  • Mounting: Surface Mount
  • Package: 4-SMD
  • Status: Active
  • Standard Package: 1,000 pcs
