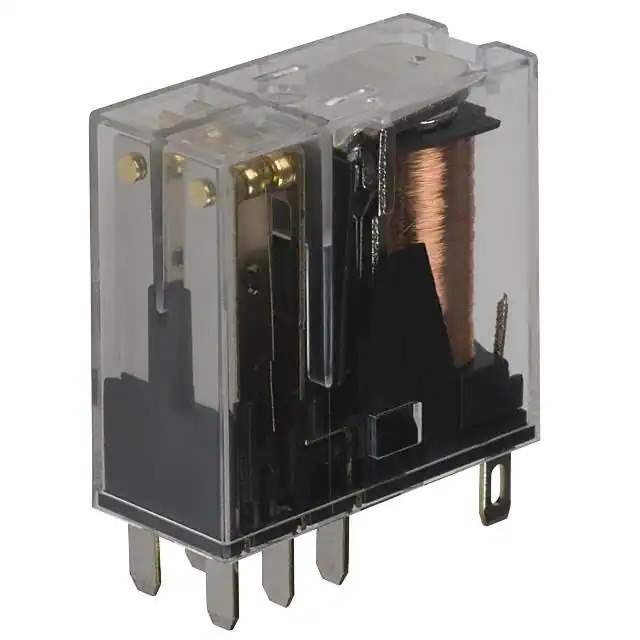

AHN22324 Real Image
Same model may have multiple batches, images only for reference.

AHN22324

Part No AHN22324
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series AHN
Package Tube
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 22 mA
Coil Type Non Latching
Features Diode, Lighted Indicator
Termination Style Plug In
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 1.09 kOhms
Base Product Number AHN223
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 848031-AHN22324
Ultra Librarian 3D Model Ultra Librarian AHN22324 CAD Model

Description

The Panasonic AHN series power relay is a high-quality component for various applications.

  • Contact Rating: 5A
  • Coil Voltage: 24VDC
  • Relay Type: DPDT (2 Form C)
  • Contact Material: Silver Nickel (AgNi)
  • Mounting Type: Plug-In
  • Operate Time: 15ms
  • Release Time: 20ms
  • Temperature Range: -40°C to 70°C
  • Series: AHN
  • Manufacturer: Panasonic
