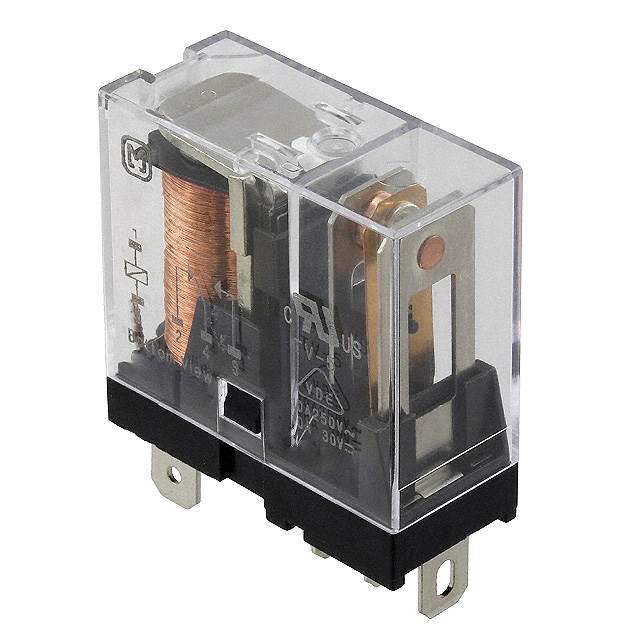

AHN12105 Real Image
Same model may have multiple batches, images only for reference.

AHN12105

Part No AHN12105
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 5V / General Purpose Relay SPDT (1 Form C) 5VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series AHN
Package Box
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 106.4 mA
Coil Type Non Latching
Features Lighted Indicator
Termination Style Plug In
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.75 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 50°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 47 Ohms
Base Product Number AHN121
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.49.0075
Other Names -AHN12105-ND
Standard Package 500
Win Source Part Number 1218425-AHN12105
Ultra Librarian 3D Model Ultra Librarian AHN12105 CAD Model

Description

The AHN series power relay from Panasonic Electric Works is a general-purpose non-latching relay with a plug-in termination style.

  • Termination Style: Plug-In
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Switching Voltage: 250VAC and 30VDC
  • Contact Rating: 16A
  • Coil Voltage: 5VDC
  • Coil Resistance: 47 Ohms
  • Coil Current: 106.4 mA
  • Operate Time: 15ms
  • Release Time: 5ms
  • Seal Rating: -
  • Socketable: Yes
  • Operating Temperature: -40°C to 50°C
