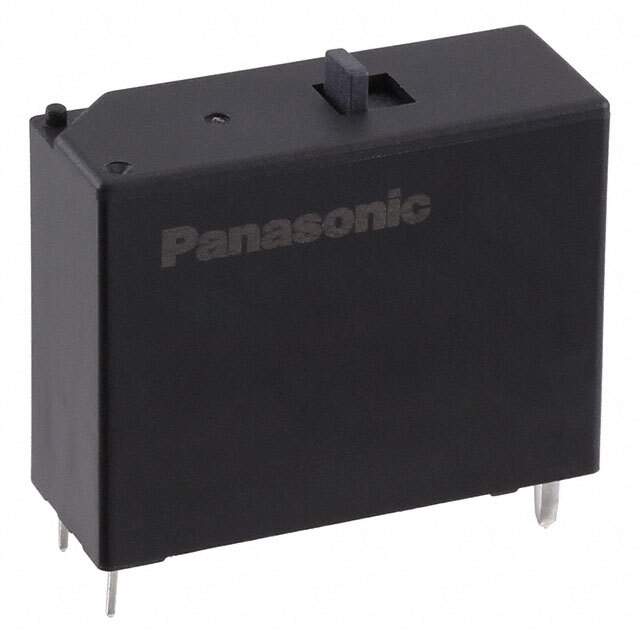

The Panasonic Electric Works ADJH Power Relay is a high-performance relay that operates in the power relays, over 2 amps category.

• Win Source Part Number: It has a Win Source Part Number of 985836-ADJH23124 and is designed to be used in a wide range of electronic applications.
• Package: The relay comes in a tray package with a standard package of 50.
• Contact Form: It has a contact form of SPST-NO (1 Form A) and a contact material of Silver Tin Oxide (AgSnO).
• Coil Resistance: The coil resistance is 288 Ohms and the coil current is 83.3 mA.
• Timing: The operate time is 20 ms and the release time is 20 ms.
• Type: The relay is a general-purpose type and has a coil type of latching, dual coil.
• Coil Voltage: The coil voltage is 24VDC and the contact rating (current) is 50 A.
• Switching Voltage: The switching voltage is 480VAC - Max and the seal rating is sealed - flux protection.
• Mounting: The mounting type is through-hole and the temperature range - operating is -40°C ~ 85°C.
