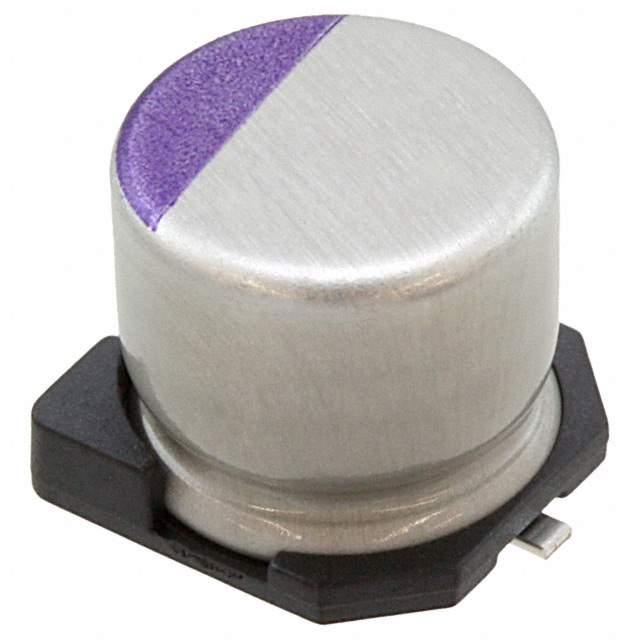

Same model may have multiple batches, images only for reference.

6SVP82M

Name: 6SVP82M
Brand: Panasonic
SKU: 764488
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	6SVP82M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 82UF 20% 6.3V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Panasonic Electronic Components
Series	OS-CON, SVP
Type	Polymer
Capacitance	82μF
Tolerance	±20%
Voltage Rating	6.3V
ESR (Equivalent Series Resistance)	45 mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature Range	-55°C ~ 105°C
Ripple Current - Low Frequency	85mA @ 120Hz
Ripple Current - High Frequency	1.7A @ 100kHz
Dimension	0.248" Dia (6.30mm)
Height - Seated (Maximum)	0.236" (6.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting	SMD
Package	Radial, Can - SMD
Win Source Part Number	764488-6SVP82M
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	1k pcs
Ultra Librarian 3D Model	Ultra Librarian 6SVP82M CAD Model

Description

The Panasonic Electronic Components SVP82M is a polymer capacitor with a capacitance of 82μF and a voltage rating of 6.3V.

Tolerance: ±20%
ESR: 45 mOhm
Low-Frequency Ripple Current: 85mA @ 120Hz
High-Frequency Ripple Current: 1.7A @ 100kHz
Series: OS-CON SVP
Lifetime: 2000 hours @ 105°C
Package: Radial Can-SMD
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
