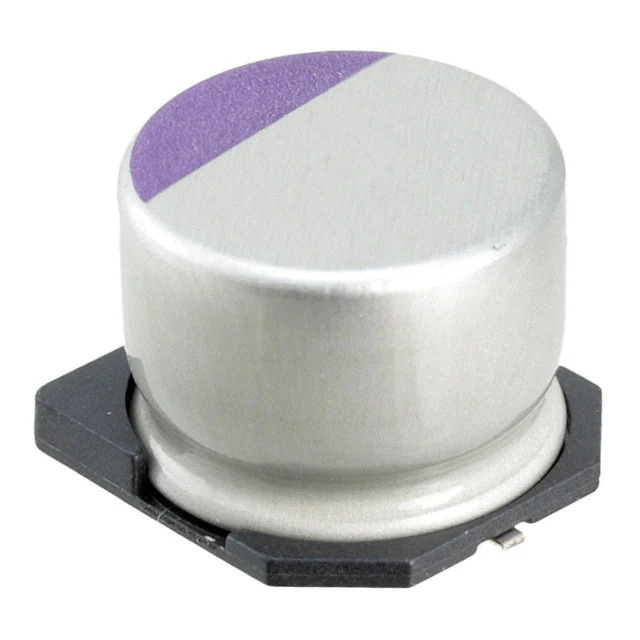

Same model may have multiple batches, images only for reference.
6SVP820M Panasonic
Same model may have multiple batches, images only for reference.

6SVP820M

Part No 6SVP820M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 820UF 20% 6.3V SMD / 820 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can - SMD 12mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVP
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 820 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) 12mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 272 mA @ 120 Hz
Ripple Current @ High Frequency 5.44 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.500" (12.70mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 6SVP
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359500-6SVP820M
Ultra Librarian 3D Model Ultra Librarian 6SVP820M CAD Model

Description

The Panasonic Electronic Components OS-CON™ SVP series capacitor is a high-quality aluminum polymer capacitor suitable for a wide range of applications.

  • Series: OS-CON SVP
  • Capacitance: 820 μF
  • Voltage Rating: 6.3 V
  • ESR: 12mOhm
  • Mounting Type: Surface Mount
  • Package: Radial, Can-Style
  • Size: 0.394" (Diameter)
  • Height: 0.500"
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Application: General Purpose
