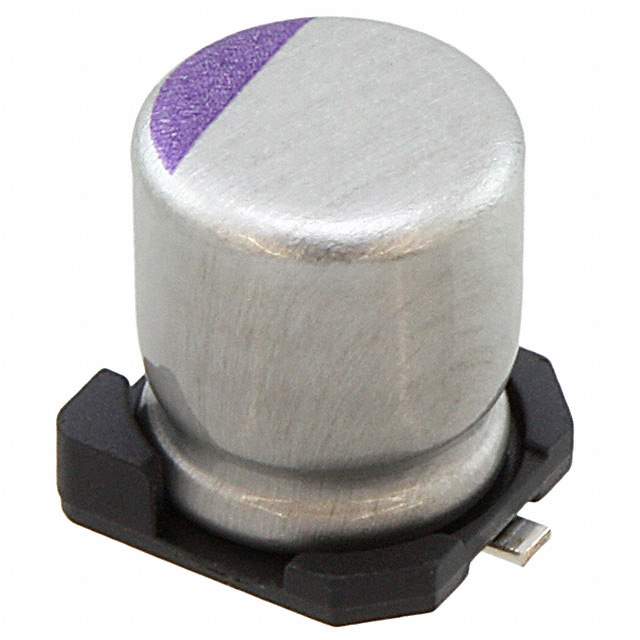

6SVP47M Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Type Polymer
Capacitance 47μF
Tolerance ±20%
Voltage - Rated 6.3V
ESR (Equivalent Series Resistance) 70mOhm
Lifetime at Temp. 2000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at Low Frequency 55mA at 120Hz
Ripple Current at High Frequency 1.1A at 100kHz
Parts Dimension 0.197" Dia
Height - Seated (Maximum) 0.236" (6.00mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129699-6SVP47M
Manufacturer Homepage www.ssdc-jp.com/eng/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 6SVP47M CAD Model

Description

The Panasonic Electronic Components 1129699-6SVP47M is a medium-popularity electronic component that belongs to the capacitor category.

  • Component Category: Capacitor
  • Type: Polymer
  • Mounting Style: SMD
  • Package: Radial, Can - SMD
  • Capacitance: 47μF
  • Tolerance: ±20%
  • Voltage Rating: 6.3V
  • ESR: 70mOhm
  • Operating Temperature: -55°C ~ 105°C
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
