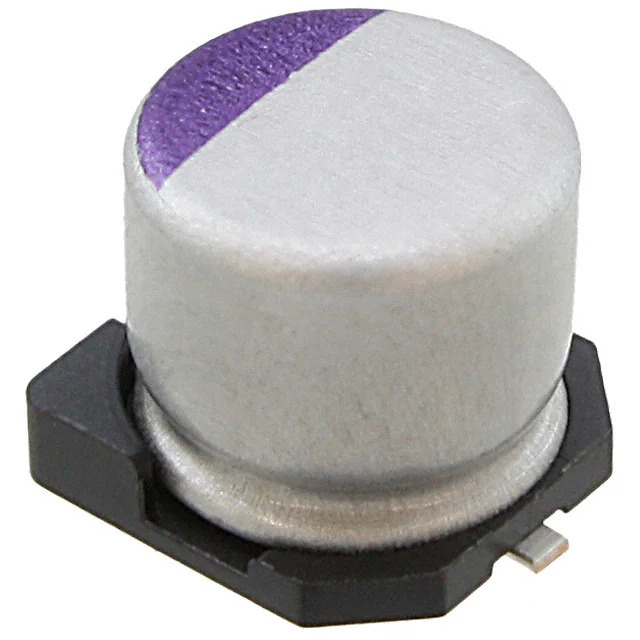

Same model may have multiple batches, images only for reference.

50SVPF18M

Name: 50SVPF18M
Brand: Panasonic
SKU: 1359565
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	50SVPF18M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 18UF 20% 50V SMD / 18 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 35mOhm 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVPF
Package	Tape & Reel
Product Status	Active
Type	Polymer
Capacitance	18 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	35mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	135 mA @ 120 Hz
Ripple Current @ High Frequency	2.7 A @ 100 kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.276" (7.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	50SVPF
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359565-50SVPF18M
Ultra Librarian 3D Model	Ultra Librarian 50SVPF18M CAD Model

Description

The 1359565-50SVPF18M is a polymer capacitor from Panasonic Electronic Components.

Series: OS-CON™ SVPF
Capacitance: 18 μF
Voltage Rating: 50 V
Tolerance: ±20%
ESR: 35 mOhm
Application: General Purpose
Ripple Current (Low Frequency): 135 mA @ 120 Hz
Ripple Current (High Frequency): 2.7 A @ 100 kHz
Mounting Type: Surface Mount
Package / Case: Radial, Can - SMD
Size: 0.315" diameter
Height: 0.276"
Lifetime: 5000 Hours @ 105°C
REACH: Unaffected
ECCN: EAR99
Product Status: Active
