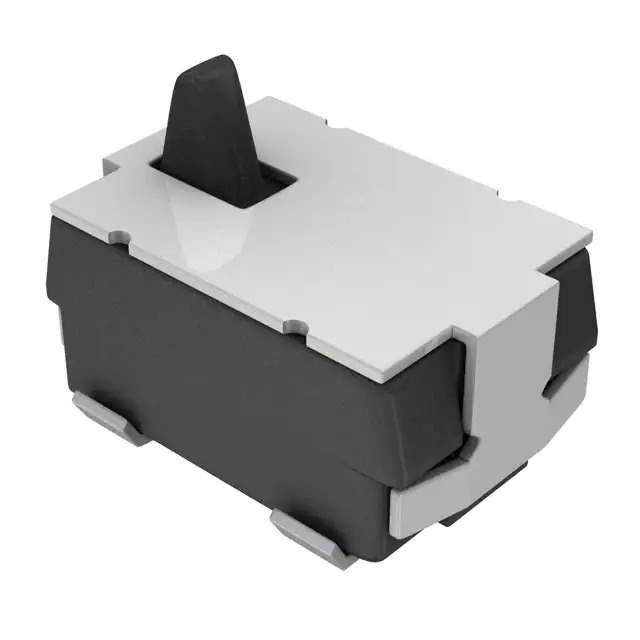

ESE-16J001 Real Image
Same model may have multiple batches, images only for reference.

ESE-16J001

Part No ESE-16J001
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPST-NO 10MA 5V / Switch SPST-NO Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Panasonic
Series ESE16
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 5 V
Actuator Type Angled Toggle (Detector)
Mounting Type Surface Mount
Termination Style SMD (SMT) Tab
Operating Force 25gf
Operating Position 0.087" (2.2mm)
Temperature Range - Operating -10°C ~ 60°C
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Base Product Number ESE-16
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 871218-ESE-16J001
Ultra Librarian 3D Model Ultra Librarian ESE-16J001 CAD Model

Description

The ESE16 series from Panasonic is a surface mount limit switch.

  • Series: ESE16
  • Mounting Type: Surface Mount
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Voltage Rating: 5V DC
  • Operating Force: 25gf
  • Mechanical Life: 50,000 cycles
  • Actuator Type: Angled Toggle
  • Temperature Range: -10°C to 60°C
