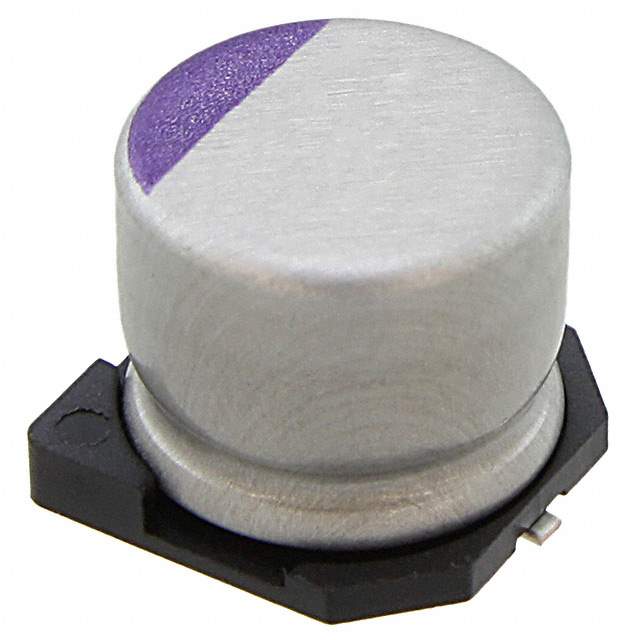

Same model may have multiple batches, images only for reference.

35SVPF39M

Name: 35SVPF39M
Brand: Panasonic
SKU: 1328515
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	35SVPF39M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 39UF 20% 35V SMD / 39 µF 35 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Type	Polymer
Capacitance	39 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	30mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ Low Frequency	140 mA @ 120 Hz
Ripple Current @ High Frequency	2.8 A @ 100 kHz
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.276" (7.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting	Surface Mount
Case / Package	Radial, Can - SMD
Base Product Number	35SVPF
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	P16561TR,P16561CT,P16561DKR
Standard Package	1,000
Win Source Part Number	1328515-35SVPF39M
Ultra Librarian 3D Model	Ultra Librarian 35SVPF39M CAD Model

Description

The Panasonic Electronic Components 1328515-35SVPF39M is a polymer capacitor with a capacitance of 39 µF and voltage rating of 35 V.

Capacitance: 39 µF
Voltage Rating: 35 V
ESR (Equivalent Series Resistance): 30mOhm
Ripple Current (Low Frequency): 140 mA @ 120 Hz
Ripple Current (High Frequency): 2.8 A @ 100 kHz
Mounting Type: Surface Mount
Package: Radial, Can - SMD
Standard Package: 1,000
Lifetime: 5000 Hrs @ 105°C
Operating Temperature Range: -55°C to 105°C
ROHS3 Compliant: Yes
