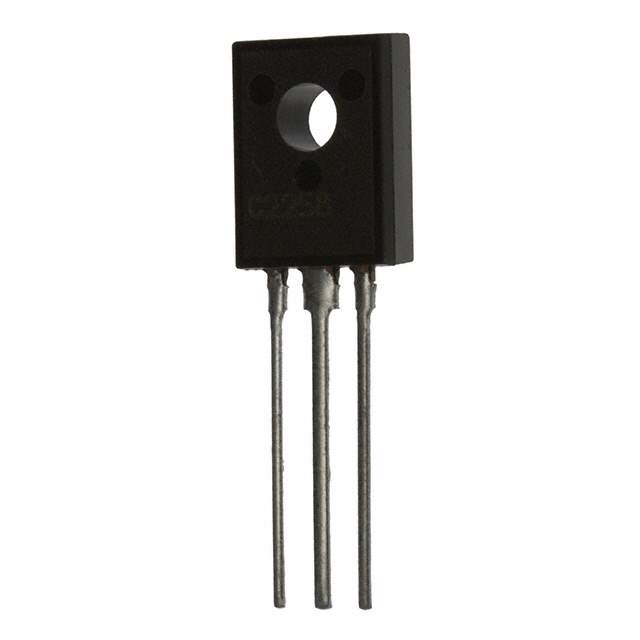

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type NPN - Darlington
Current - Collector (Ic) (Maximum) 1A
Voltage - Collector Emitter Breakdown (Maximum) 60V
Vce Saturation (Maximum) @ Ib, Ic 1.8V @ 1mA, 1A
Current - Collector Cutoff (Maximum) 1μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 6500 @ 1A, 10V
Power - Max 5W
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-225AA, TO-126-3
Manufacturer Package TO-126B-A1
Win Source Part Number 762852-2SD2018
Family Name 2SD2018
Introduction Date July 03, 2002
ECCN EAR99
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2SD2018 CAD Model

Description

The 2SD2018 is an NPN Darlington transistor designed for use in discrete semiconductor products by Panasonic Electronic Components.

  • Power Rating: 5W
  • Package: TO-225AA, TO-126-3
  • Collector Current (Ic): 1A
  • Collector-Emitter Breakdown Voltage: 60V
  • DC Current Gain (hFE): 6500 @ 1A and 10V
  • Status: Obsolete (EOL)
  • Alternative Parts: 2SD1630M-A, 2SD1630, and 2SD1630M
