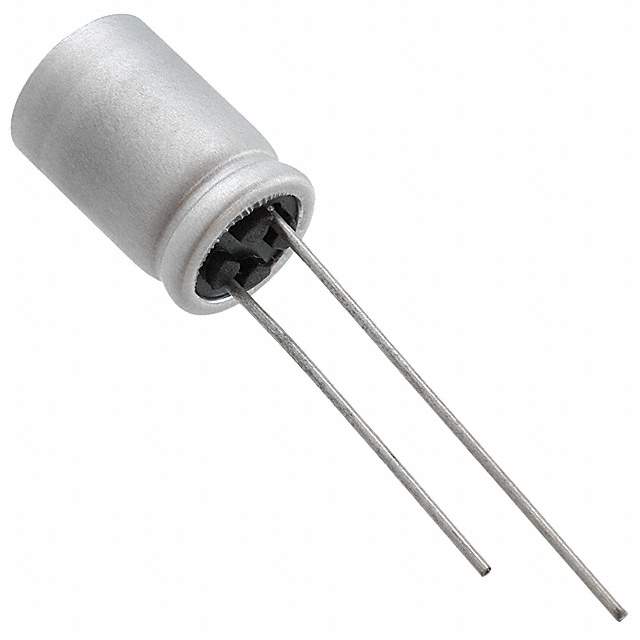

2R5SEP680M Real Image
Same model may have multiple batches, images only for reference.

2R5SEP680M

Part No 2R5SEP680M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description Radial Lead Type | CAP ALUM POLY 680UF 20% 2.5V T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Type Polymer
Capacitance 680μF
Tolerance ±20%
Voltage - Rated 2.5V
ESR (Equivalent Series Resistance) 13mOhm
Lifetime at Temp. 2000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at Low Frequency 226mA at 120Hz
Ripple Current at High Frequency 4.52A at 100kHz
Lead Spacing 0.138" (3.50mm)
Parts Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.472" (12.00mm)
Mounting Style Through Hole
Manufacturer Package Radial, Can
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 1124330-2R5SEP680M
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2R5SEP680M CAD Model

Description

The 1124330-2R5SEP680M is a polymer capacitor from Panasonic Electronic Components, with a capacitance of 680μF and a tolerance of ±20%.

  • Capacitance: 680μF
  • Tolerance: ±20%
  • Voltage Rating: 2.5V
  • Lead Spacing: 0.138" (3.50mm)
  • Application: General-purpose
  • Height: 0.472" (12.00mm)
  • Package: Radial, can
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 200
