Same model may have multiple batches, images only for reference.

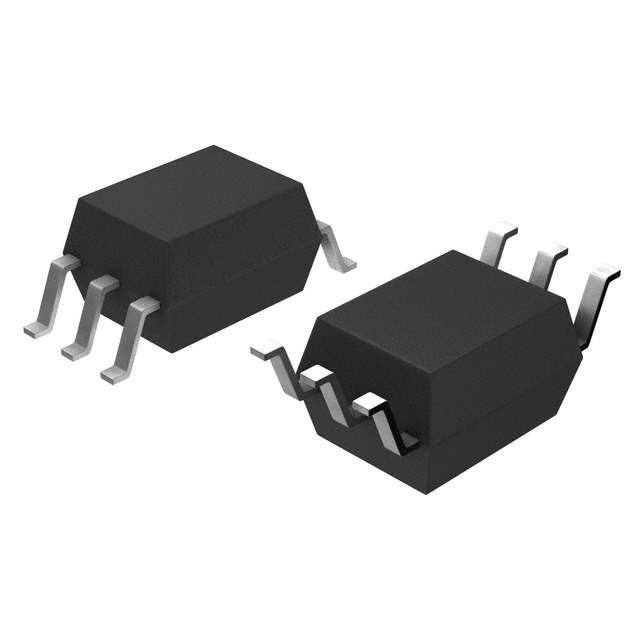

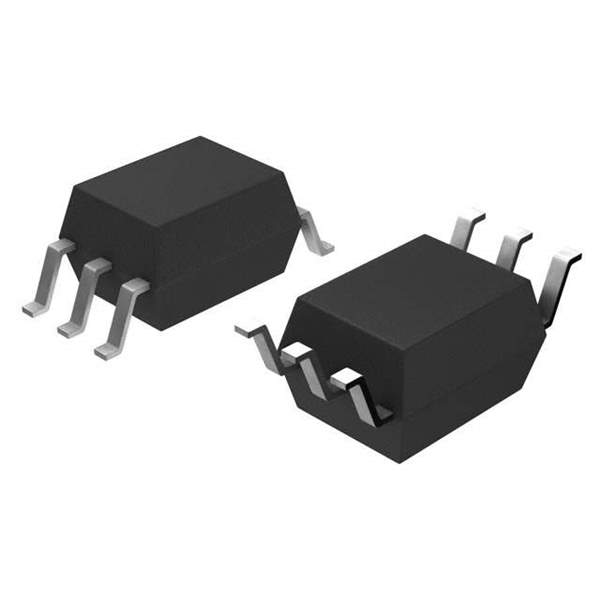

AQV255GS Real Image
Same model may have multiple batches, images only for reference.

AQV255GS

Part No AQV255GS
Manufacturer Panasonic
Catalog Solid State Relays
Description RELAY SSR SPST 1.25A 80V 6SOP / Solid State Relay 30mA 1.5V DC-IN 1.25A 64V AC/DC-OUT 6-Pin SOP Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series PhotoMOS AQV
Packaging Tube
Circuit SPST-NO (1 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 150 mOhm
Load Current 1.25A
Voltage - Input 1.32VDC
Voltage - Load 0 ~ 80 V
Mounting SMD
Termination Style Gull Wing
Package 6-SOP (0.173", 4.40mm)
Manufacturer Package 6-SOP
Relay Type Relay
Win Source Part Number 768741-AQV255GS
Popularity Medium
Supply and Demand Status Limited
Quantity per package 75
Family Name AQV255GS
Introduction Date May 01, 2006
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian AQV255GS CAD Model

Description

The Panasonic Electric Works AQV255GS is a PhotoMOS AQV series relay with a SPST-NO (1 Form A) circuit.

  • Load Current Rating: 1.25A
  • Voltage Rating: 0 ~ 80 V
  • Package: 6-SOP (0.173", 4.40mm)
  • Mounting: SMD
  • On-State Resistance: 150 mOhm
  • Estimated EOL Date: 2029
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Alternative Part: G3VM-81HR
