Same model may have multiple batches, images only for reference.

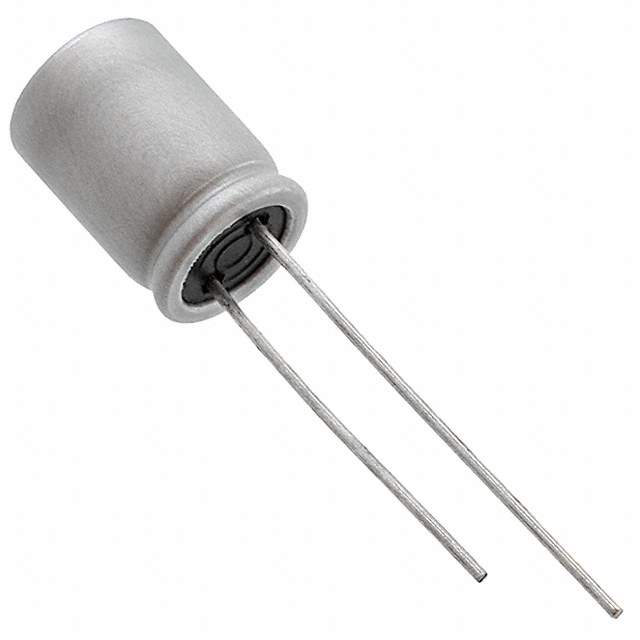

20SEPF390M Real Image
Same model may have multiple batches, images only for reference.

20SEPF390M

Part No 20SEPF390M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description Radial Lead Type | CAP ALUM POLY 390UF 20% 20V T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Type Polymer
Capacitance 390μF
Tolerance ±20%
Voltage - Rated 20V
ESR (Equivalent Series Resistance) 14mOhm
Lifetime at Temp. 5000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at Low Frequency 247.5mA at 120Hz
Ripple Current at High Frequency 4.95A at 100kHz
Lead Spacing 0.138" (3.50mm)
Parts Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.472" (12.00mm)
Mounting Style Through Hole
Manufacturer Package Radial, Can
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 736145-20SEPF390M
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 20SEPF390M CAD Model

Description

The 20SEPF390M Capacitor from Panasonic Electronic Components is a product designed for general-purpose applications.

  • Packaging: bulk packaging.
  • Mounting Style: through hole.
  • Capacitance: 390μF.
  • Voltage Rated: 20V.
  • Supply and Demand Status: Sufficient.
  • Manufacturer Pack Quantity: 200.
  • MSL Level: 1 (Unlimited).
  • Lifetime @ Temp.: 5000 Hrs @ 105°C.
