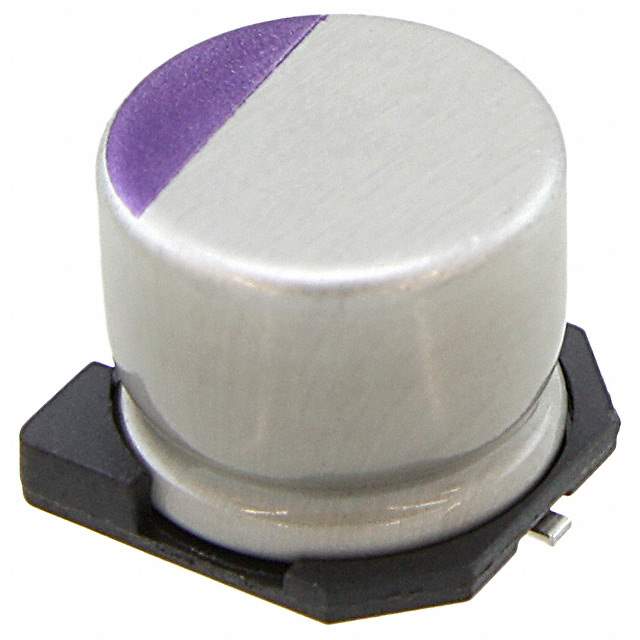

16SVPC120M Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPC
Package Tape & Reel
Type Polymer
Capacitance 120 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 27mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 145 mA @ 120 Hz
Ripple Current @ High Frequency 2.9 A @ 100 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.276" (7.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number 16SVPC
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Names P16469DKR,P16469CT,P16469TR
Standard Package 1,000
Win Source Part Number 998397-16SVPC120M
Ultra Librarian 3D Model Ultra Librarian 16SVPC120M CAD Model

Description

The 998397-16SVPC120M from Panasonic Electronic Components is an aluminum-polymer capacitor with a capacitance of 120 µF and a voltage rating of 16 V.

  • Capacitance: 120 µF
  • Voltage Rating: 16 V
  • Ripple Current: 145 mA @ 120 Hz and 2.9 A @ 100 kHz
  • Material: polymer type
  • Package: radial, can - SMD
  • Application: general purpose
  • Height: 0.276" (7.00mm)
  • Flammability Rating: -
  • Insulation Material: polybutylene terephthalate (PBT), glass filled
