Same model may have multiple batches, images only for reference.

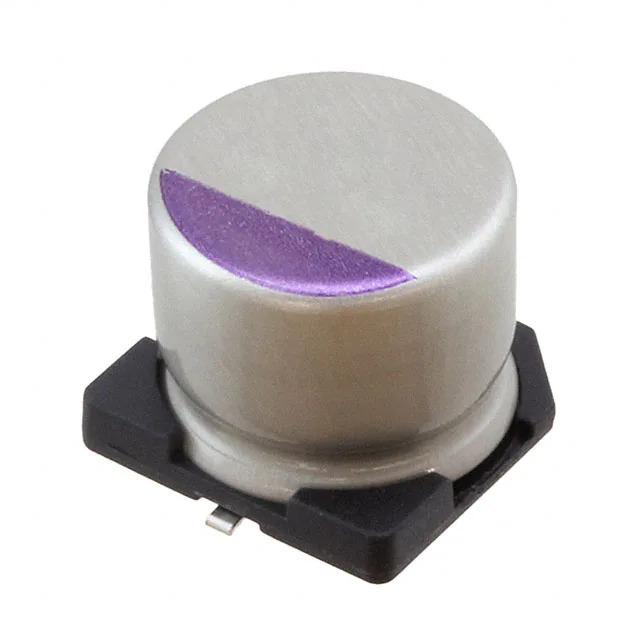

100SXV15M Panasonic
Same model may have multiple batches, images only for reference.

100SXV15M

Part No 100SXV15M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 15UF 20% 100V SMD / 15 µF 100 V Aluminum - Polymer Capacitors Radial, Can - SMD 40mOhm 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SXV
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 15 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) 40mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 117.5 mA @ 120 Hz
Ripple Current @ High Frequency 2.35 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 100SXV
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360334-100SXV15M
Ultra Librarian 3D Model Ultra Librarian 100SXV15M CAD Model

Description

The 1360334-100SXV15M is a polymer capacitor manufactured by Panasonic Electronic Components.

  • Category: Aluminum Capacitor
  • Package: Radial, Can - SMD
  • Capacitance: 15µF
  • Voltage: 100V
  • ESR: 40mOhm
  • Ripple Current (Low Frequency): 117.5mA @ 120Hz
  • Ripple Current (High Frequency): 2.35A @ 100kHz
  • Size: 0.315" Dia (8.00mm)
  • Height: 0.472" (12.00mm)
  • Product Status: Active
  • Lifetime: 1000 hours @ 125°C
  • Application: General Purpose
