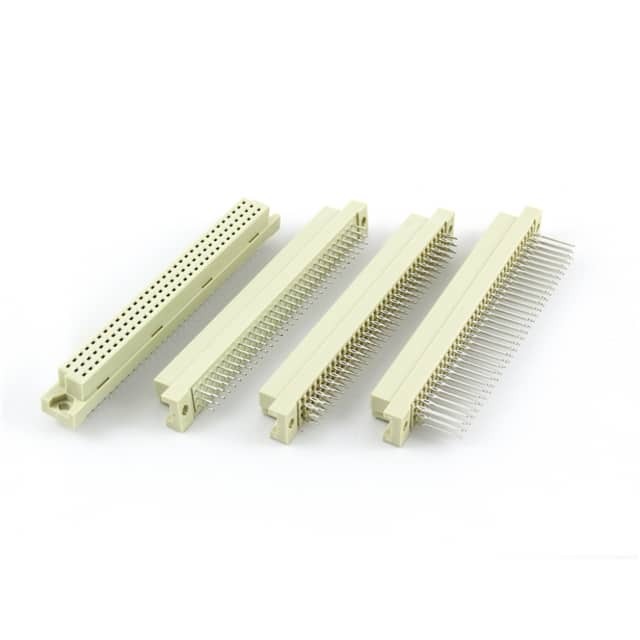

Same model may have multiple batches, images only for reference.
9001-12961C00A
Same model may have multiple batches, images only for reference.

9001-12961C00A

Part No 9001-12961C00A
Manufacturer Oupiin
Catalog Backplane Connectors
Description DIN41612, HALF C TYPE, 96 PIN, R / 96 Position Din Connector Receptacle, Female Sockets Gold Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr Oupiin
Series 9001
Package Tray
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 96
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C
Mounting Type Through Hole
Termination Solder
Contact Finish Gold
Contact Finish Thickness Flash
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT)
Base Product Number 9001
Standard Package 216 pcs
MSL Level 2 (1 Year)
HTSUS 8536.69.4040
Win Source Part Number 849500-9001-12961C00A
Ultra Librarian 3D Model Ultra Librarian 9001-12961C00A CAD Model

Description

The 849500-9001-12961C00A is a backplane connector from Oupiin.

  • Series: 9001
  • Positions: 96
  • Pitch: 0.100" (2.54mm)
  • Connector Type: Receptacle, female sockets
  • Positions Loaded: All positions
  • Rows: Three
  • Termination Style: Solder
  • Contact Finish: Gold
  • Insulation Material: Polybutylene terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Mounting: Through hole
  • Temperature Range: -55°C to 125°C
  • Current Rating: 2A
  • Package: Tray
  • Standard Package: 216 pcs
  • Suitable for: Backplane applications in the electronics industry
