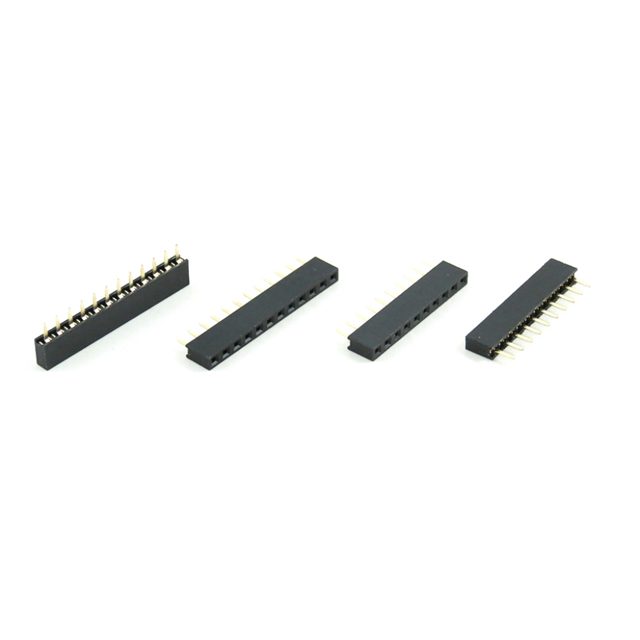

Same model may have multiple batches, images only for reference.

2041-1X03G00SB

Get a Quote

Part No	2041-1X03G00SB
Manufacturer	Oupiin
Catalog	Rectangular Connectors
Description	PCB SOCKET, SINGLE ROW, 3 PIN, S / 3 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Oupiin
Series	2041
Package	Bulk
Connector Type	Socket
Contact Type	Female Socket
Style	Board to Board
Number of Positions	3
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Height	0.197" (5.00mm)
Contact Length - Post	0.126" (3.20mm)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating (Amps)	2A
Insulation Material	Thermoplastic, Polyester, Glass Filled
Contact Shape	Square
Contact Material	Copper Alloy
Contact Finish Thickness - Post	Flash
Base Product Number	2041
MSL Level	2 (1 Year)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	2553-2041-1X03G00SB
Standard Package	88
Win Source Part Number	1155469-2041-1X03G00SB
Ultra Librarian 3D Model	Ultra Librarian 2041-1X03G00SB CAD Model

Alternative Products

Description

The Oupiin 2041 Series is a board-to-board female socket connector with a push-pull fastening type and through-hole mounting type.

Series: 2041
Type: Board-to-board female socket
Fastening Type: Push-pull
Mounting Type: Through-hole
Pitch Mating: 0.100-inch (2.54mm)
Contact Finish Thickness: Gold flash
Flammability Rating: UL94 V-0
Insulation Material: Thermoplastic, polyester, and glass-filled
Temperature Range: -55°C to 105°C
Current Rating: 2A
Contact Shape: Square
Contact Length: 0.126 inches (3.20mm)
Packaging: Bulk
Standard Package: 88 pieces
