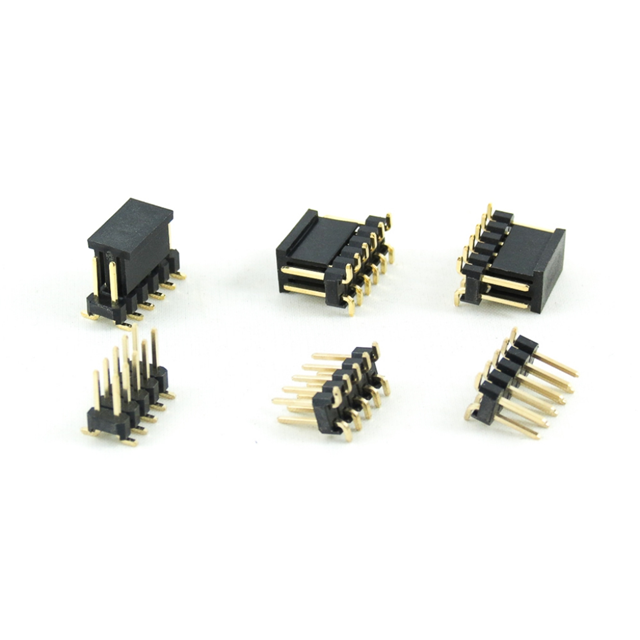

2015-2X20G00DB

Get a Quote

Part No	2015-2X20G00DB
Manufacturer	Oupiin
Catalog	Rectangular Connectors
Description	PIN HEADER, DOUBLE ROW, 40 PIN, / Connector Header Surface Mount 40 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Oupiin
Series	2015
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	40
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.244" (6.20mm)
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Copper Alloy
Insulation Material	Plastic
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	2A
Contact Finish Thickness - Post	Flash
Base Product Number	2015
MSL Level	2 (1 Year)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	2553-2015-2X20G00DB
Standard Package	5,000
Win Source Part Number	1163139-2015-2X20G00DB
Ultra Librarian 3D Model	Ultra Librarian 2015-2X20G00DB CAD Model

Description

The Oupiin 2015 Series is a board-to-board male pin header connector with a push-pull fastening type and SMD (SMT) mounting type.

Pitch Mating: 0.100-inch (2.54mm)
Contact Finish Thickness: gold flash
Flammability Rating: UL94 V-0
Insulation Material: plastic
Temperature Range: -40°C to 105°C
Current Rating: 2A
Contact Shape: square
Contact Length: 0.244 inches (6.20mm)
Packaging: bulk
Standard Package: 5,000 pieces
