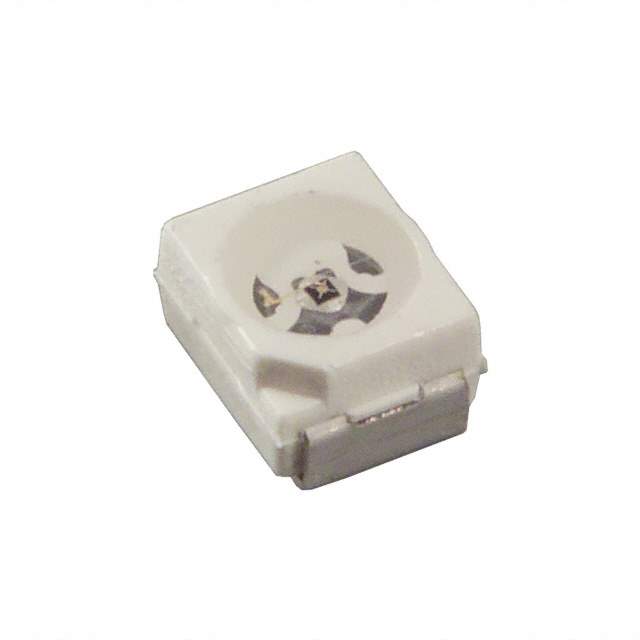

Q62702P1825 Real Image
Same model may have multiple batches, images only for reference.

Q62702P1825

Part No Q62702P1825
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 950NM 100MA SMD
Datasheet
Q62702P1825 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer OSRAM Opto Semiconductors Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Infrared (IR)
Continuous forward current- Max 100mA
Radiant Intensity (Ie) Min @ If 2.5mW/sr @ 100mA
Wavelength 950nm
Forward Voltage 1.3V
Viewing Angle 120°
Orientation Top View
Temperature Range - Operating -40°C to 100°C (TA)
Mounting SMD (SMT)
Dimension 2-SMD, No Lead
Win Source Part Number 210429-Q62702P1825
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian Q62702P1825 CAD Model

Description

The OSRAM Opto Semiconductors Inc. infrared (IR) component is a high-quality electronic component that is ideal for use in optoelectronics applications.

  • Top view orientation
  • Mounted using surface mount technology (SMT)
  • Forward voltage: 1.3V
  • Viewing angle: 120 degrees
  • Wavelength: 950nm
  • Suitable for a wide range of applications.
  • Radiant intensity (Ie): 2.5mW/sr @ 100mA
  • Obsolete (EOL)
  • Temperature range: -40 to 100 degrees Celsius (TA)
  • 2-SMD no lead dimension
  • Maximum continuous forward current: 100mA
  • Supply and demand status is balanced.
