Same model may have multiple batches, images only for reference.

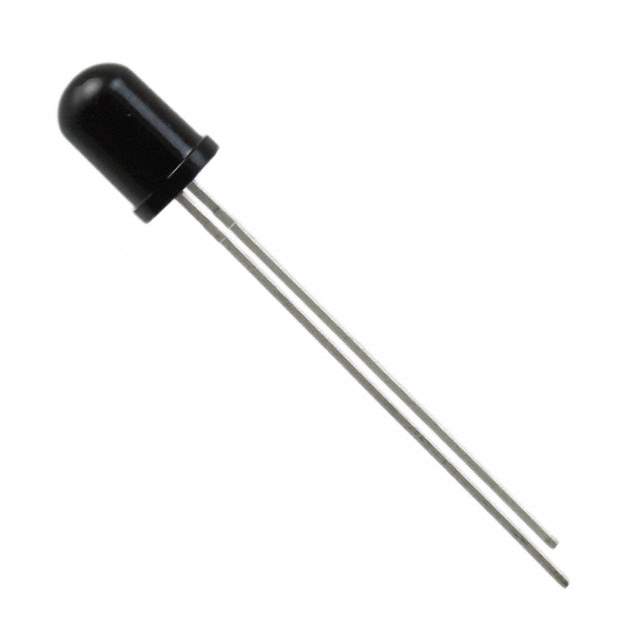

SFH 4546-AWBW Real Image
Same model may have multiple batches, images only for reference.

SFH 4546-AWBW

Part No SFH 4546-AWBW
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 5MM RADIAL / Infrared (IR) Emitter 950nm 1.5V 100mA 100mW/sr @ 100mA 40° Radial
Datasheet
SFH 4546-AWBW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Package Bulk
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Radiant Intensity (Ie) Min @ If 100mW/sr @ 100mA
Wavelength 950nm
Voltage - Forward (Vf) (Typ) 1.5V
Viewing Angle 40°
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Mounting Type Through Hole
Package / Case Radial
Base Product Number SFH4546
Other Names 475-3584-6,Q65110A9615,SFH 4546-AWBW,475-3584-1INACTIVE,475-3584,SFH4546-AWBW,475-3584-2,475-3584-1,SFH4546-AWBW,475-3584-6INACTIVE,475-3584-6,475-3584-1,475-3584-2
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242492-SFH 4546-AWBW
Ultra Librarian 3D Model Ultra Librarian SFH 4546-AWBW CAD Model

Description

The SFH 4546-AWBW is an infrared (IR) LED emitter from ams-OSRAM USA Inc. It has a maximum DC forward current of 100mA and a forward voltage of 1.5V.

  • Package: radial
  • Viewing Angle: 40 degrees
  • Wavelength: 950nm
  • Radiant Intensity: 100mW/sr @ 100mA
  • Temperature Range: -40°C to 100°C (TA)
  • REACH: unaffected
