Same model may have multiple batches, images only for reference.

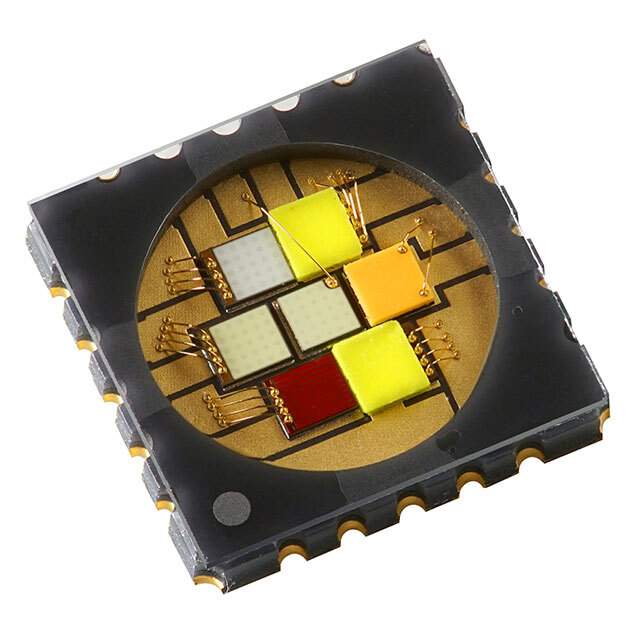

LZ7-04M2PD-0000 Real Image
Same model may have multiple batches, images only for reference.

LZ7-04M2PD-0000

Part No LZ7-04M2PD-0000
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - Color
Description LED LZ7 6 COLOR 60W SMD / LED Lighting Color LZ7 Amber, Blue, Cyan, Green, Lime, Red 590nm Amber, 451nm Blue, 500nm Cyan, 520nm Green, 623nm Red 2828 (7070 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Color LED Lighting
Mfr ams-OSRAM USA Inc.
Series LZ7
Package Tape & Reel
Color Amber, Blue, Cyan, Green, Lime, Red
Wavelength 590nm Amber, 451nm Blue, 500nm Cyan, 520nm Green, 623nm Red
Current - Test 1A Amber, 1A Blue, 1A Cyan, 1A Green, 1A Lime, 1A Red
Voltage - Forward (Vf) (Typ) 3.3V Amber, 3.05V Blue, 3.45V Cyan, 3.55V Green, 6.1V Lime, 2.3V Red
Lumens/Watt @ Current - Test 42 lm/W Amber, 14 lm/W Blue, 39 lm/W Cyan, 51 lm/W Green, 41 lm/W Red, 102 lm/W Lime
Current - Max 1.5A Amber, 3A Blue, 1A Cyan, 3A Green, 2.5A Lime, 2.5A Red
Luminous Flux @ Current/Temperature 140lm Amber, 42lm Blue, 135lm Cyan, 180lm Green, 620lm Lime, 95lm Red
Temperature - Test 25°C
Viewing Angle 114°
Mounting Type Surface Mount
Package / Case 2828 (7070 Metric)
Supplier Device Package SMD
Size / Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.050" (1.26mm)
Thermal Resistance of Package 0.8°C/W
Base Product Number LZ7-04
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1337835-LZ7-04M2PD-0000
Ultra Librarian 3D Model Ultra Librarian LZ7-04M2PD-0000 CAD Model

Description

The LZ7-04M2PD-0000 is a color LED lighting from ams-OSRAM USA Inc.

  • Series: LZ7
  • Colors: Amber, Blue, Cyan, Green, Lime, and Red
  • Package: 2828 (7070 Metric)
  • Viewing Angle: 114 Degrees
  • Current (Max): 1A to 3A (Varies by Color)
  • Wavelength: 590nm to 623nm (Varies by Color)
  • Thermal Resistance: 0.8°C/W
  • REACH: Unaffected
  • Application: Color LED Lighting
