Same model may have multiple batches, images only for reference.

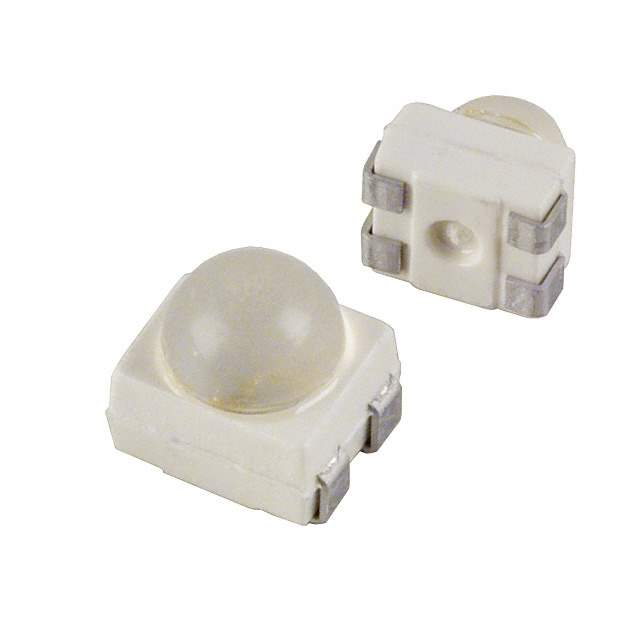

LV E63C-BBDA-35-L-Z Real Image
Same model may have multiple batches, images only for reference.

LV E63C-BBDA-35-L-Z

Part No LV E63C-BBDA-35-L-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Datasheet
LV E63C-BBDA-35-L-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr ams-OSRAM USA Inc.
Series Power TOPLED® with Lens
Package Tape & Reel
Product Status Obsolete
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 2315mcd
Lens Style Round with Domed Top
Lens Size 2.60mm Dia
Voltage - Forward (Vf) (Typ) 3.8V
Current - Test 30mA
Viewing Angle 20°
Mounting SMD (SMT)
Wavelength - Dominant 503nm
Wavelength - Peak 501nm
Package / Case 4-PLCC
Supplier Device Package 4-PLCC
Dimension 3.20mm L x 2.80mm W
Height (Max) 3.50mm
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1314340-LV E63C-BBDA-35-L-Z
Ultra Librarian 3D Model Ultra Librarian LV E63C-BBDA-35-L-Z CAD Model

Description

The Power TOPLED® with Lens is a green LED indication from the Optoelectronics category.

  • Viewing Angle: 20 degrees
  • Voltage Forward: 3.8V
  • Millicandela Rating: 2315mcd
  • Wavelength Dominant: 503nm
  • Wavelength Peak: 501nm
  • Package: 4-PLCC
  • Mounting: SMD mounted
  • Height: 3.50mm
  • Lens Style: Round with a domed top
  • Lens Size: 2.60mm diameter
  • Dimension: 3.20mm L x 2.80mm W
  • Status: Obsolete
