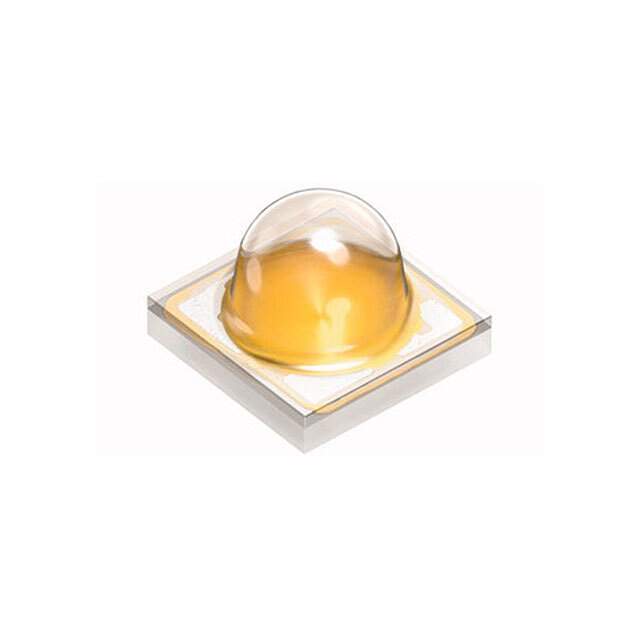

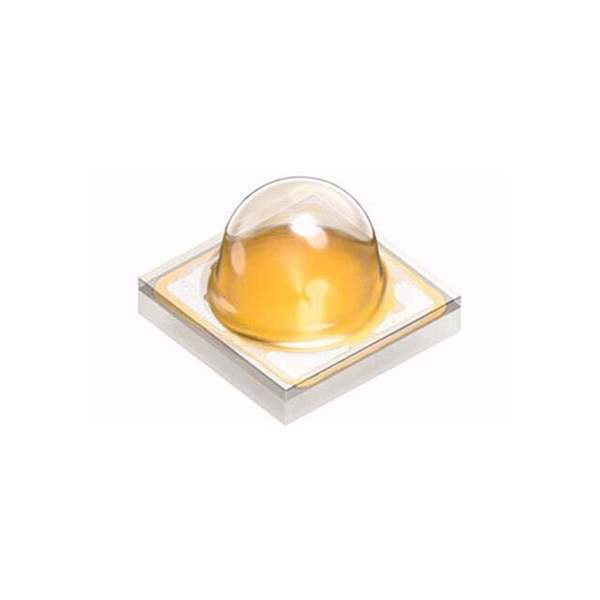

LUW CQ7P-LPLR-5E8G-1 Real Image
Same model may have multiple batches, images only for reference.

LUW CQ7P-LPLR-5E8G-1

Part No LUW CQ7P-LPLR-5E8G-1
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - White
Datasheet
LUW CQ7P-LPLR-5E8G-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr ams-OSRAM USA Inc.
Series OSLON® SSL 80
Package Tape & Reel (TR)
Product Status Obsolete
Color White, Cool
CCT (K) 5700K
Flux @ 25°C, Current - Test 126lm (112lm ~ 140lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 3.2V
Lumens/Watt @ Current - Test 113 lm/W
CRI (Color Rendering Index) 70 (Typ)
Current - Max 1A
Viewing Angle 80°
Mounting SMD (SMT)
Package / Case 1212 (3030 Metric)
Supplier Device Package CSMD
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.093" (2.35mm)
Thermal Resistance of Package 9.6°C/W
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1315452-LUW CQ7P-LPLR-5E8G-1
Ultra Librarian 3D Model Ultra Librarian LUW CQ7P-LPLR-5E8G-1 CAD Model

Description

The LUW CQ7P-LPLR-5E8G-1 is an optoelectronic component from the OSLON® SSL 80 series.

  • Series: OSLON® SSL 80
  • Color: White, Cool
  • Viewing Angle: 80 degrees
  • Package: Tape and Reel (TR)
  • Height: 0.093 inches
  • Mounting Type: Surface Mounted (SMD)
  • Current-Max: 1A
  • Voltage-Forward (Vf): 3.2V
  • Current-Test: 350mA
  • CCT: 5700K
  • CRI: 70 (typ)
  • Thermal Resistance of Package: 9.6°C/W
