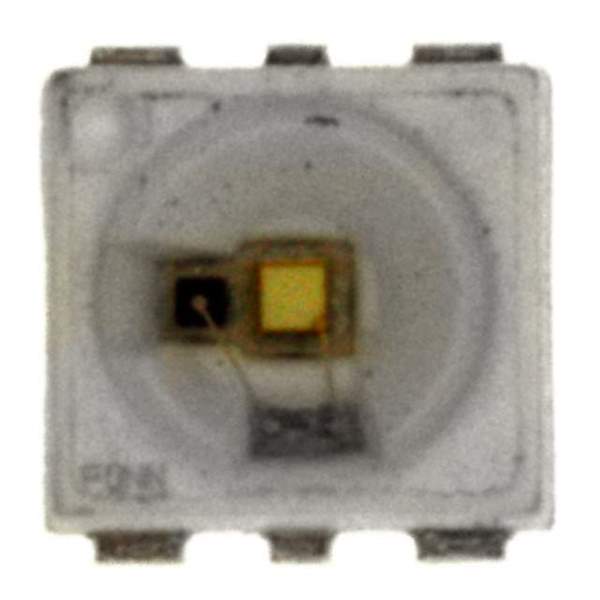

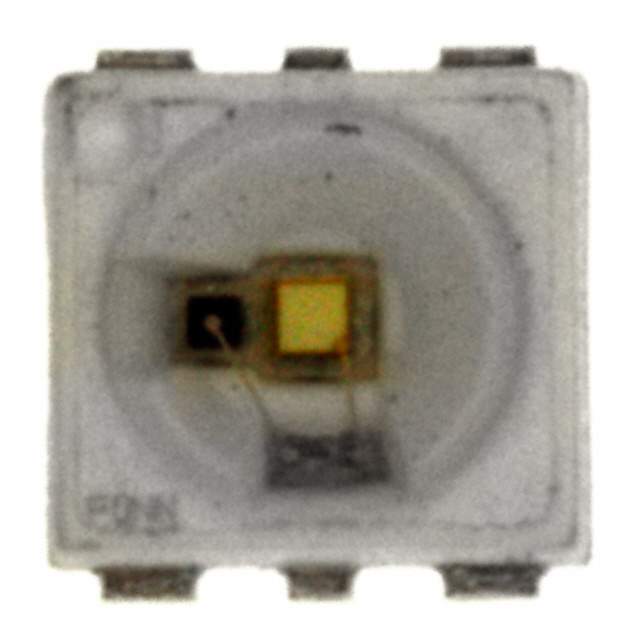

LT G6SP-CBEB-25-1-140-R18-Z

Part No LT G6SP-CBEB-25-1-140-R18-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - Color
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - Color
Mfr ams-OSRAM USA Inc.
Series Advanced Power TOPLED®
Package Tape & Reel
Product Status Obsolete
Color Green
Wavelength 525nm (513nm ~ 537nm)
Current - Test 140mA
Voltage - Forward (Vf) (Typ) 3.3V
Lumens/Watt @ Current - Test 45 lm/W
Current - Max 250mA
Luminous Flux @ Current/Temperature 21lm (12lm ~ 30lm)
Temperature - Test 25°C
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 6-SMD, J-Lead
Supplier Device Package SMD
Dimension 0.130" L x 0.118" W (3.30mm x 3.00mm)
Height - Seated (Max) 0.083" (2.10mm)
Thermal Resistance of Package 40°C/W
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1315449-LT G6SP-CBEB-25-1-140-R18-Z
Ultra Librarian 3D Model Ultra Librarian LT G6SP-CBEB-25-1-140-R18-Z CAD Model

Description

The ams-OSRAM USA Inc. Advanced Power TOPLED® G6SP-CBEB-25-1-140-R18-Z is a green LED lighting color with a viewing angle of 120°.

  • Color: Green
  • Viewing Angle: 120°
  • Lumens/Watt: 45 lm/W
  • Voltage-Forward (Vf): 3.3V
  • Current-Test: 140mA
  • Package: Tape and Reel
  • Package / Case: 6-SMD, J-Lead
  • Height-Seated (Max): 0.083" (2.10mm)
  • RoHS: Yes
  • Thermal Resistance of Package: 40°C/W
  • Dimension: 0.130" L x 0.118" W (3.30mm x 3.00mm)
  • Mounting Type: SMD (SMT)
  • Status: Obsolete
