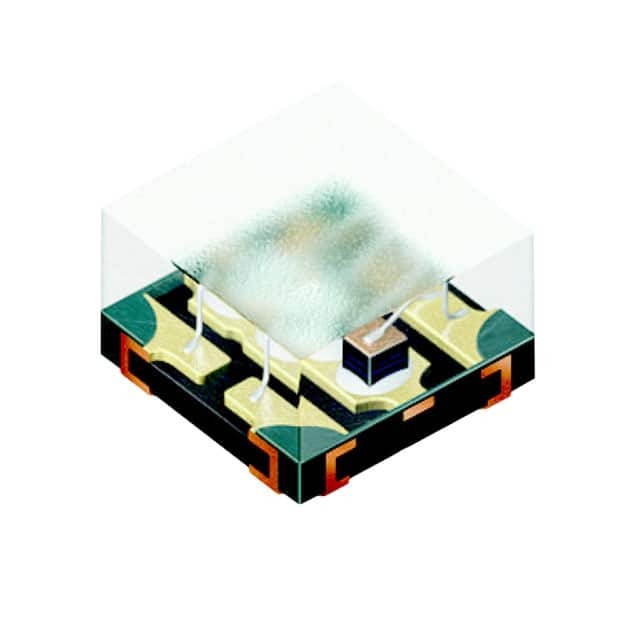

LRTBR48G-P9Q7-1+R7S5-26+N5P-68-R33-ZB OSRAM Opto Semiconductors Inc.
Same model may have multiple batches, images only for reference.

LRTBR48G-P9Q7-1+R7S5-26+N5P-68-R33-ZB

Part No LRTBR48G-P9Q7-1+R7S5-26+N5P-68-R33-ZB
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Datasheet
LRTBR48G-P9Q7-1+R7S5-26+N5P-68-R33-ZB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr ams-OSRAM USA Inc.
Series Multi CHIPLED
Package Tape & Reel
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 102mcd Red, 228mcd Green, 51mcd Blue
Lens Style Square with Flat Top
Lens Size 1.13mm
Voltage - Forward (Vf) (Typ) 1.95V Red, 2.7V Green, 2.7V Blue
Current - Test 10mA Red, 5mA Green, 5mA Blue
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 623nm Red, 530nm Green, 471nm Blue
Wavelength - Peak 632nm Red, 523nm Green, 455nm Blue
Package / Case 0404 (1010 Metric)
Supplier Device Package 4-SMD
Dimension 1.00mm L x 1.00mm W
Height (Max) 0.75mm
Base Product Number LRTBR48
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1314420-LRTBR48G-P9Q7-1+R7S5-26+N5P-68-R33-ZB
Ultra Librarian 3D Model Ultra Librarian LRTBR48G-P9Q7-1+R7S5-26+N5P-68-R33-ZB CAD Model

Description

The Multi CHIPLED series LRTBR48G-P9Q7-1+R7S5-26+N5P-68-R33-ZB LED indication component from OSRAM Opto Semiconductors Inc. is an RGB LED with common anode configuration.

  • Configuration: Common Anode
  • Lens: Colorless and Clear
  • Viewing Angle: 120 degrees
  • Millicandela Rating (Red): 102mcd
  • Millicandela Rating (Green): 228mcd
  • Millicandela Rating (Blue): 51mcd
  • Voltage-Forward (Red): 1.95V
  • Voltage-Forward (Green): 2.7V
  • Voltage-Forward (Blue): 2.7V
  • Current-Test (Red): 10mA
  • Current-Test (Green): 5mA
  • Current-Test (Blue): 5mA
  • Package: Tape and Reel
  • Mounting: SMD
  • Package Dimension: 1.00mm L x 1.00mm W
  • Lens Style: Square with Flat Top
