Same model may have multiple batches, images only for reference.

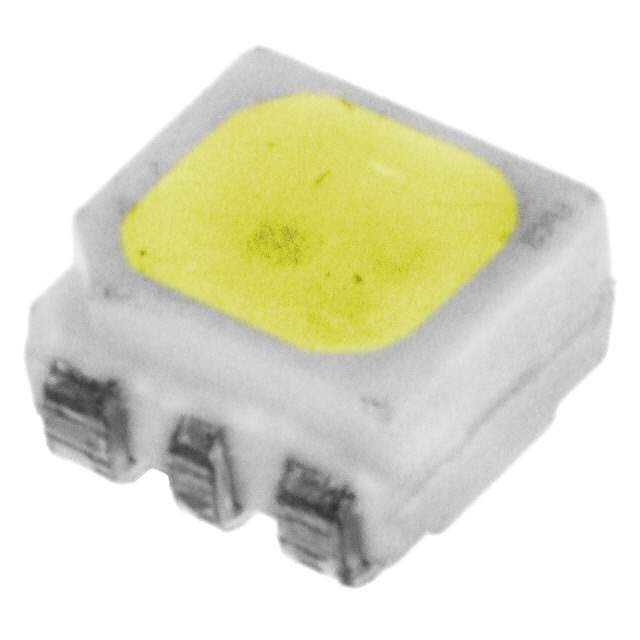

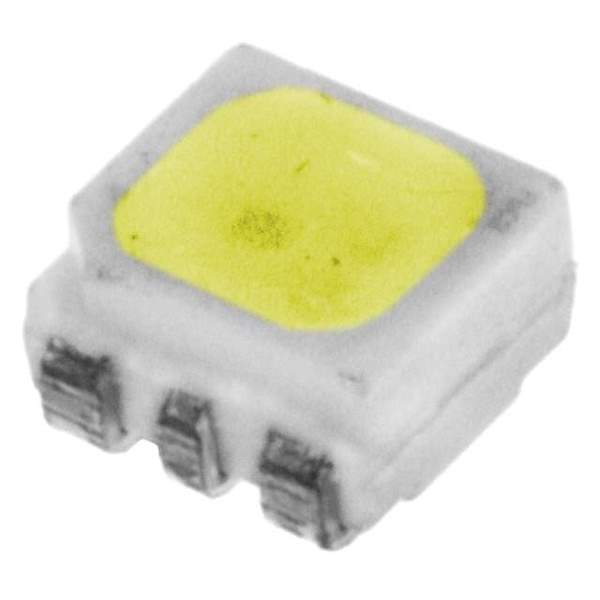

LWWWG6SG-BBCB-5K8L Real Image
Same model may have multiple batches, images only for reference.

LWWWG6SG-BBCB-5K8L

Part No LWWWG6SG-BBCB-5K8L
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog OEM Parts (J - L)
Description LED Uni-Color White 6-Pin PLCC T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package PLCC
Color White
Depth 3.2 mm
Forward Current 30 mA
Forward Voltage 3.8 V
Length 3.5 mm
Lens Style Colored, Diffused, Square
Luminous Flux 12 lm
Luminous Intensity 4.5 cd
Maximum Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Elements 3
Number of LEDs 3
Number of Pins 6
Packaging Tape and Reel
Reverse Voltage 5 V
RoHS Compliant
Test Current 30 mA
Viewing Angle 120 °
Win Source Part Number 972539-LWWWG6SG-BBCB-5K8L
Categories OEM Parts(J-L)
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LWWWG6SG-BBCB-5K8L CAD Model

Description

The OSRAM Opto Semiconductors Inc. LED light pipe, Win Source Part Number 972539-LWWWG6SG-BBCB-5K8L, is a high-quality component designed for use in optics, LEDs, and light pipes.

  • Color: White
  • Length: 3.5mm
  • Mounting: SMD (SMT)
  • Elements: 3
  • Forward Voltage: 3.8 V
  • Luminous Intensity: 4.5 cd
  • Forward Current: 30 mA
  • Reverse Voltage: 5 V
  • Viewing Angle: 120 degrees
  • Pins: 6
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 100 degrees Celsius
  • Minimum Operating Temperature: -40 degrees Celsius
