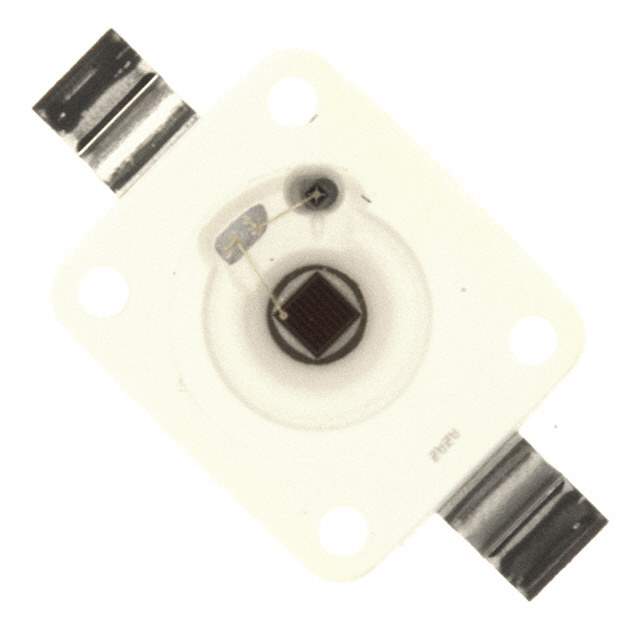

The LRW5SM-GZHZ-1 is a high-performance, surface-mountable LED manufactured by OSRAM Opto Semiconductors. This LED is designed for applications requiring high brightness, long lifespan, and energy efficiency. Its compact size and robust design make it suitable for various indoor and outdoor lighting applications.

Applications:

• Architectural Lighting
• Automotive Lighting
• Backlighting for LCD Displays
• Electronic Signs and Signals
• General Illumination

Features:

• High Brightness Output: Delivers intense light output for clear visibility.
• Long Lifespan: Offers extended operational life, reducing maintenance costs.
• Energy Efficient: Consumes minimal power, contributing to energy savings.
• Compact Size: Allows for versatile integration into various designs.
• Surface Mountable: Facilitates easy and efficient assembly onto PCBs.
• Wide Viewing Angle: Provides broad light distribution for optimal coverage.
• RoHS Compliant: Ensures environmental friendliness and adherence to regulations.

Benefits:

• Improved Visibility: Enhances clarity and visibility in various lighting applications.
• Reduced Maintenance: Minimizes the need for frequent replacements, lowering operational expenses.
• Lower Energy Consumption: Decreases energy usage, resulting in cost savings and environmental benefits.
• Design Flexibility: Enables creative and versatile lighting designs.
• Easy Integration: Simplifies the assembly process, reducing manufacturing time and costs.
• Reliable Performance: Offers consistent and dependable operation in diverse conditions.

Technical Specifications:

The LRW5SM-GZHZ-1 typically features a forward voltage of around 3.2V, a forward current of 20mA, and a luminous intensity ranging from 5000 to 8000 mcd. It operates within a temperature range of -40°C to +85°C, ensuring reliable performance in harsh environments. The device is commonly packaged in a small SMD package. The specific color temperature and viewing angle vary depending on the exact model configuration. OSRAM's advanced chip technology ensures consistent color output and high reliability.

The material composition of the LED includes a robust epoxy resin that provides excellent protection against environmental factors. The LED is designed to withstand reflow soldering processes, making it suitable for automated assembly lines. Its excellent thermal conductivity ensures efficient heat dissipation, contributing to its long lifespan. OSRAM's stringent quality control measures ensure that each LED meets the highest standards of performance and reliability.
