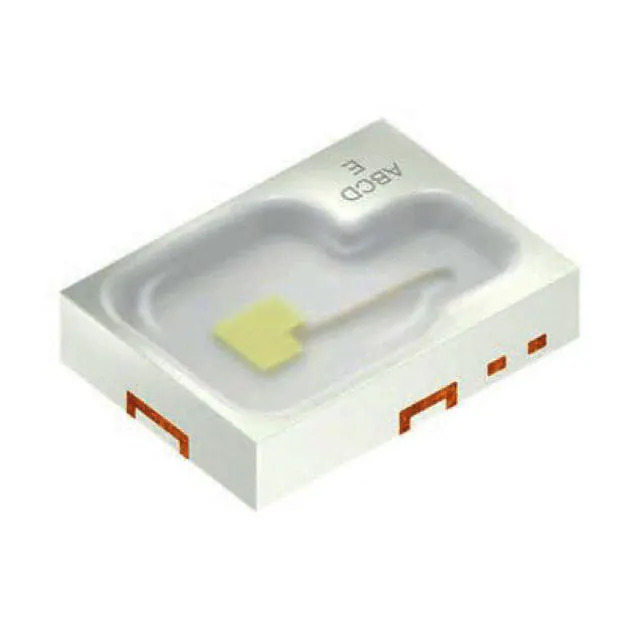

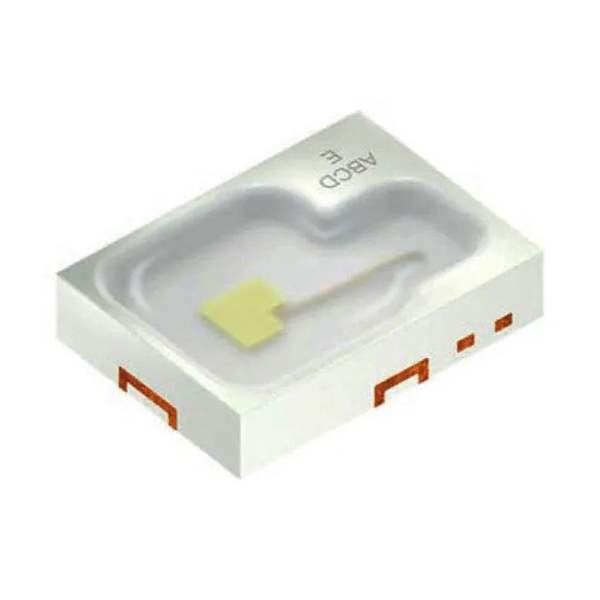

KW DMLN33.SG-7J7K-EBVFFCBB46-8E8G-200-S OSRAM Opto Semiconductors Inc.
Same model may have multiple batches, images only for reference.

KW DMLN33.SG-7J7K-EBVFFCBB46-8E8G-200-S

Part No KW DMLN33.SG-7J7K-EBVFFCBB46-8E8G-200-S
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - White
Description LED LIGHTING HIGH-POWER
Datasheet
KW DMLN33.SG-7J7K-EBVFFCBB46-8E8G-200-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - White LED Lighting
Mfr ams-OSRAM USA INC.
Series SYNIOS® P2720
Package Tape & Reel
Product Status Active
Color White
CCT (K) -
Flux @ 85°C, Current - Test -
Flux @ 25°C, Current - Test 78lm (56lm ~ 100lm)
Current - Test 200mA
Voltage - Forward (Vf) (Typ) 3V
Lumens/Watt @ Current - Test 130 lm/W
CRI (Color Rendering Index) -
Current - Max 300mA
Viewing Angle 120°
Mounting Type Surface Mount
Package / Case 1108 (2720 Metric)
Supplier Device Package SMD
Size / Dimension 0.108" L x 0.079" W (2.75mm x 2.00mm)
Height - Seated (Max) 0.028" (0.70mm)
Thermal Resistance of Package 18°C/W
Base Product Number KWDMLN33
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371886-KW DMLN33.SG-7J7K-EBVFFCBB46-8E8G-200-S
Ultra Librarian 3D Model Ultra Librarian KW DMLN33.SG-7J7K-EBVFFCBB46-8E8G-200-S CAD Model

Description

The ams-OSRAM USA INC SYNIOS® P2720 is a white LED lighting component manufactured by ams-OSRAM USA INC.

  • Mounting Type: Surface Mount
  • Package Size: 1108 (2720 Metric)
  • LED Size: 0.108" L x 0.079" W (2.75mm x 2.00mm)
  • Height: 0.028" (0.70mm)
  • Maximum Current: 300mA
  • Forward Voltage: 3V
  • Viewing Angle: 120°
  • Color Temperature (CCT): Not Specified
  • Flux: 78lm (56lm ~ 100lm) @ 200mA, 25°C
  • Luminous Efficacy: 130 lm/W @ 200mA
  • Thermal Resistance: 18°C/W
  • Product Status: Active
  • Category: Optoelectronics - White LED Lighting
