Same model may have multiple batches, images only for reference.

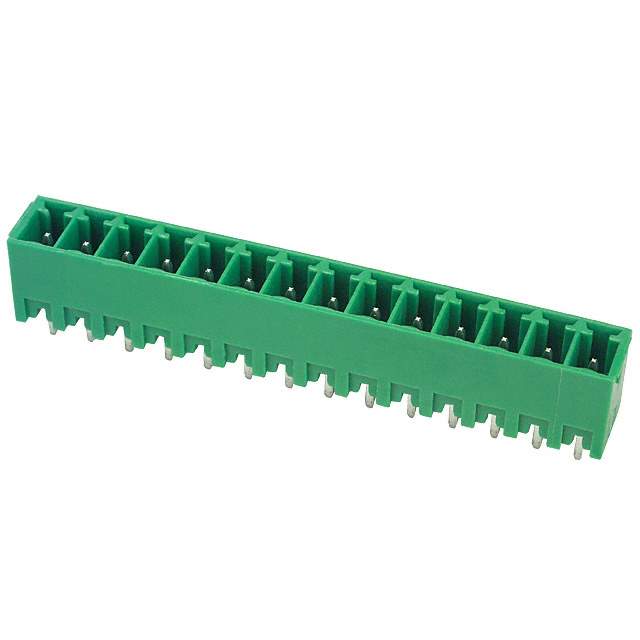

EDSTLZ1555/14 Real Image
Same model may have multiple batches, images only for reference.

EDSTLZ1555/14

Part No EDSTLZ1555/14
Manufacturer On Shore Technology Inc.
Catalog Terminal Blocks
Description TERM BLOCK HDR 14POS VERT 3.81MM
Datasheet
EDSTLZ1555/14 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer On Shore Technology Inc.
Packaging Bulk
Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 14
Positions Per Level 14
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation Vertical
Mounting Solder
Voltage - UL 300V
Temperature Range - Operating -30°C to 105°C
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.134" (3.40mm)
Insulation Height 0.134" (3.40mm)
Win Source Part Number 1032076-EDSTLZ1555/14
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EDSTLZ1555/14 CAD Model

Description

The On Shore Technology Inc. 1032076-EDSTLZ1555/14 is a 14-position header male pin connector.

  • Pitch: 0.150" (3.81mm)
  • Header Orientation: Vertical
  • Housing Material: Polyamide (PA), nylon
  • Operating Temperature Range: -30°C to 105°C
  • Contact Tail Length: 0.134" (3.40mm)
  • Mounting: Solder
