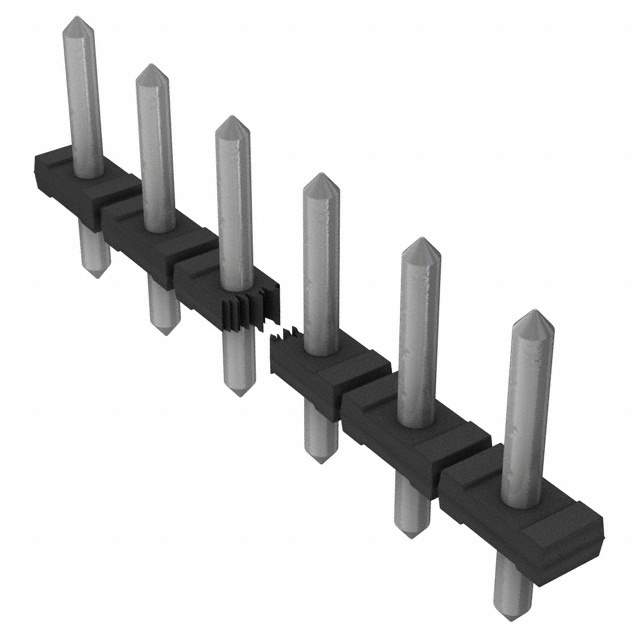

EDSTL130/09 Real Image
Same model may have multiple batches, images only for reference.

EDSTL130/09

Part No EDSTL130/09
Manufacturer On Shore Technology Inc.
Catalog Terminal Blocks
Description TERM BLOCK HDR 9POS VERT 5MM
Datasheet
EDSTL130/09 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer On Shore Technology Inc.
Packaging Bulk
Status Active
Type Header, Male Pins, Unshrouded
Number of Positions 9
Positions Per Level 9
Number of Levels 1
Pitch 0.197" (5.00mm)
Header Orientation Vertical
Termination Style Solder
Mounting Through Hole
Nominal current IN - UL 10A
Voltage - UL 300V
Color Black
Temperature Range - Operating -30°C to 105°C
Material Flammability Rating UL94 V-0
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.138" (3.50mm)
Insulation Height 0.079" (2.00mm)
Win Source Part Number 1032044-EDSTL130/09
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EDSTL130/09 CAD Model

Description

The On Shore Technology Inc. EDSTL130/09 Header is a male pin, unshrouded connector with 9 positions per level and a pitch of 5.00mm.

  • Positions per Level: 9
  • Pitch: 5.00mm
  • Material: polyamide (PA) nylon
  • Flammability Rating: UL94 V-0
  • Mounting Style: through-hole
  • Termination Style: solder
  • Voltage: up to 300V
  • Nominal Current: up to 10A
  • Insulation Height: 2.00mm
  • Operating Temperature Range: -30°C to 105°C
  • Color: black
  • Contact Mating Finish: not specified
  • Ideal For: use in various applications such as interconnects and connectors
  • Manufacturer: On Shore Technology Inc.
