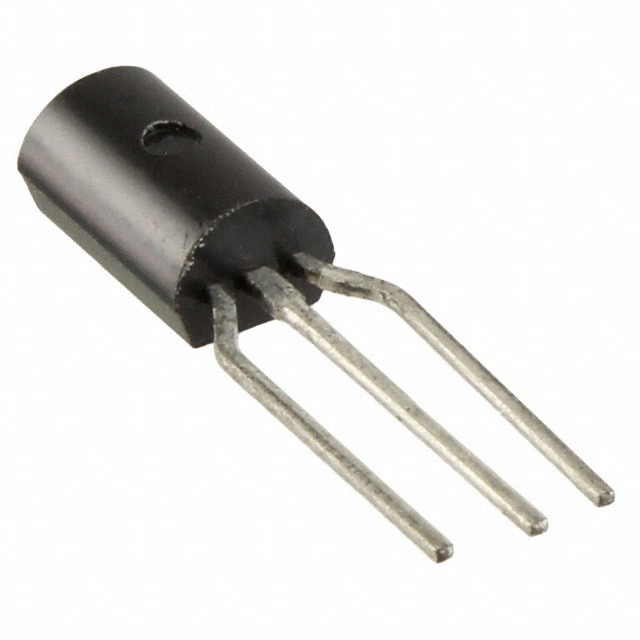

The ON Semiconductor TN6718A is a high-performance NPN bipolar junction transistor (BJT) designed for use in a wide range of electronic applications. Known for its reliability and efficiency, the TN6718A is a versatile component that can be used in amplification, switching, and signal modulation circuits.

Key Features

• High Current Gain: The TN6718A boasts a high current gain (hFE), which ensures a robust amplification of the input signal, making it suitable for high-power applications.
• Low Saturation Voltage: It has a low collector-emitter saturation voltage, which translates to reduced power loss and improved efficiency in switching applications.
• Fast Switching Speed: With its fast switching capabilities, the TN6718A is an excellent choice for applications requiring quick response times.
• High Collector Current: The transistor can handle a high collector current, making it suitable for driving larger loads.
• Wide Operating Temperature Range: It operates effectively over a broad temperature range, ensuring stability and performance under varying environmental conditions.

Applications

The TN6718A is ideal for a variety of applications, including:

• Power management circuits
• Audio amplifiers
• Signal processing
• Motor control circuits
• Switching regulators

Technical Specifications

Parameter Value Transistor Polarity NPN Collector-Emitter Voltage (VCEO) 45V Collector-Base Voltage (VCBO) 80V Emitter-Base Voltage (VEBO) 6V Collector Current (IC) 1A Power Dissipation (Pd) 0.9W Operating Junction Temperature (Tj) -55°C to +150°C

With its robust construction and ON Semiconductor's commitment to quality, the TN6718A is a reliable choice for designers and engineers looking to create high-performance electronic systems.
